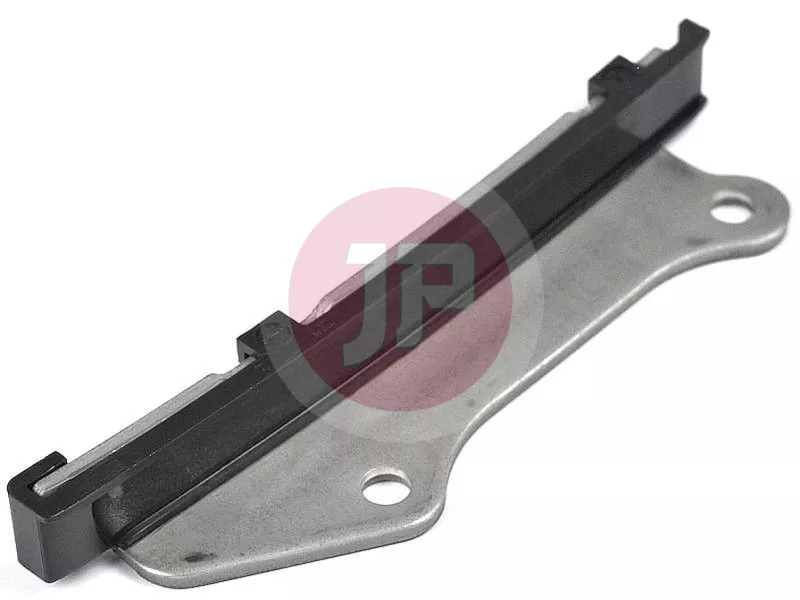

NISSAN 13085-2W200 Timing Chain Guide

The genuine NISSAN 13085-2W200 timing chain guide is a vital component of the internal combustion engine timing system. Its primary function is to provide precise, vibration-free guidance for the timing chain between the sprockets, preventing lateral deflection, excessive slack, and the risk of skipped teeth. Accurate chain guidance is critical for maintaining strict mechanical synchronization between the valves and pistons, especially during load transitions in high-torque diesel engines.

Technical Specifications and Operating Characteristics:

• Component Type: Timing chain guide rail / slide rail
• Installation Position: Internal timing drive, engine block / cylinder head
• Structural Design: Highly wear- and heat-resistant polyamide plastic sliding surface reinforced with a steel backing plate
• Lubrication: Running surface lubricated by engine oil
• Symptoms of Failure: Rattling or chattering noise from the timing assembly at idle or during cold starts, worn or grooved plastic layer, plastic debris found in the oil pan, and fault codes resulting from timing phase deviations

Compatible Vehicles:

• Nissan Nissan Truck (D22) 3.0 TD [2001 - 2005] (GUIDE CHAIN (ZD30DDT))
• Nissan Np300 F/Sbs (D22SS) [2009 - 2011] (GUIDE CHAIN)
• Nissan Patrol (Y61) 3.0 TD [2000 - 2012] (GUIDE CHAIN (ZD30DDTI))
• Nissan Terrano2 (R20) [2002 - 2004] (GUIDE CHAIN)
• Nissan Urvan (E25) 3.0 TD [2003 - 2007] (GUIDE CHAIN (ZD30DDTI))
• Nissan Urvan (E25) 3.0 D [2001 - 2007] (GUIDE CHAIN (ZD30DD))
