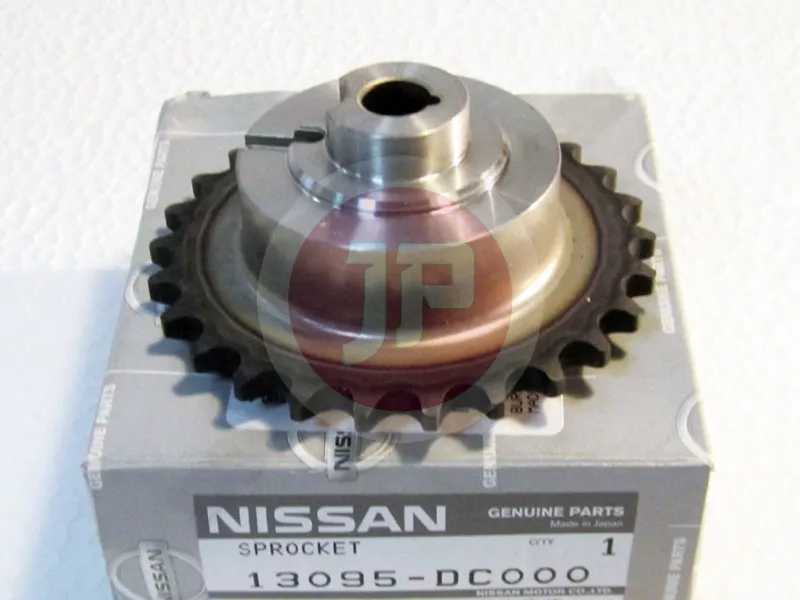

NISSAN 13095-DC000 Timing Chain Sprocket

The genuine OEM part with part number 13095-DC000 is an authentic NISSAN timing chain sprocket assembly (Sprocket Assembly) that performs essential synchronization and drive functions in the timing system of Nissan 3.0-liter diesel engines with the ZD30 engine code. The component ensures the precise transfer of torque between the timing chain and the rotating timing components, guaranteeing accurate valve and fuel injection timing.

Technical Specifications and Features:

• Manufacturer: NISSAN (Genuine OEM part)
• Part Number: 13095-DC000
• OEM / Alternative Reference Number: 130952W200
• Part Type: Timing Chain Sprocket Assembly (Sprocket Assy)
• Material Quality: Hardened, high-strength alloy steel for minimal tooth wear and high surface load capacity
• Applicable Engine Types: Nissan 3.0 Di / TD (ZD30DD, ZD30DDT, ZD30DDTI)

Operation and Potential Failure Symptoms:

The timing chain sprocket is a drive component subject to continuous, high mechanical stress and thermal loads. Wear, pitting, or scalloping/sharpening of the teeth in contact with the chain can mimic the symptoms of timing chain elongation, increase chain noise, and in severe cases cause the timing chain to skip or break, resulting in catastrophic internal engine damage. During a timing system overhaul or replacement, inspecting the sprockets and replacing them if necessary is critical to maintaining optimal engine operation.

Compatible Vehicles:

• Nissan Nissan Truck (D22) 3.0 TD [2001 - 2005] (SPROCKET ASSY (ZD30DDT))
• Nissan Np300 F/Sbs (D22SS) [2009 - 2011] (SPROCKET ASSY)
• Nissan Patrol (Y61) 3.0 TD [2000 - 2012] (SPROCKET ASSY (ZD30DDTI))
• Nissan Terrano2 (R20) [2002 - 2004] (SPROCKET ASSY)
• Nissan Urvan (E25) 3.0 D [2001 - 2007] (SPROCKET ASSY (ZD30DD))
• Nissan Urvan (E25) 3.0 TD [2003 - 2007] (SPROCKET ASSY (ZD30DDTI))
