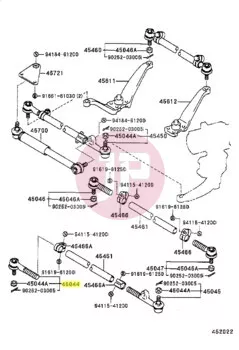

TOYOTA 45044-69125 Outer Tie Rod End

Genuine Toyota right outer tie rod end, part number 45044-69125. As a critical component of the vehicle's steering system, the tie rod end connects the steering gear to the steering knuckle. This connection converts the rotational motion of the steering wheel into the linear motion required to turn the wheels, ensuring precise vehicle handling.

Manufactured to Toyota's strict factory (OE) standards, this part guarantees a perfect fit, optimal performance, and long-term durability. It is produced from high-strength forged steel to withstand the significant forces encountered during steering and suspension travel. The integrated ball joint is sealed by a durable rubber dust boot to protect against contaminants such as dust, water, and road grime that would otherwise lead to premature wear.

Technical Specifications

• Brand: TOYOTA
• Part Number: 45044-69125
• Part Designation: Tie Rod End
• Fitting Position: Front axle, right side, outer
• Material: High-strength forged steel
• Included Accessories: Tie rod end, castle nut, cotter pin

Vehicle Compatibility

• Toyota Land Cruiser 80 Series (1990-1998): FZJ80, HDJ80, HZJ80
• Toyota Land Cruiser 105 Series (1998-2007): FZJ105, HZJ105

OEM Reference Numbers

• Primary OEM Number: 45044-69125

Symptoms of a Faulty Tie Rod End

A worn or failing tie rod end can compromise vehicle safety and handling. Common symptoms include:

• A loose, vague steering feel.
• Knocking or clunking noises, especially when turning at low speeds.
• Uneven or accelerated tire wear, particularly on the inside or outside edges.
• The vehicle pulling to one side, requiring constant steering corrections.
