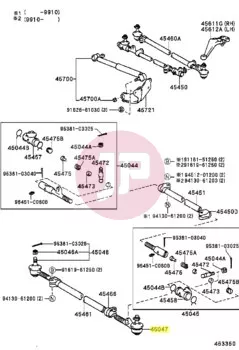

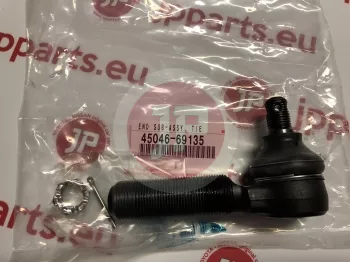

TOYOTA 45046-69135 Tie Rod End
Genuine part. Fitment information is for reference only. To ensure 100% compatibility, please send us a message with your VIN number before ordering.
Categories
OEM / Alternate Numbers
Product Description
Genuine Toyota OEM Tie Rod End (right, outer), an essential component of the vehicle's steering system. It serves as a critical pivot point between the steering gear and the steering knuckle, transforming the driver's movements on the steering wheel into the turning motion of the front wheels. Manufactured to Toyota's strict specifications, this part ensures precise steering response, vehicle stability, and optimal suspension geometry.
Technical Specifications
- Part Number (SKU): 45046-69135
- Brand: TOYOTA
- Part Name: Tie Rod End, Outer
- Fitment Position: Front Axle, Right Side, Outer
- Material: High-strength forged steel for maximum durability and safety.
- Design: Precision-machined ball stud and threaded shank for an exact fit and to facilitate wheel alignment.
Signs of Failure
A worn or damaged tie rod end can compromise the vehicle's controllability. Signs indicating the need for replacement may include: imprecise or "loose" steering, a knocking sound when turning or on uneven road surfaces, steering wheel vibration, and abnormal, rapid wear on the inner or outer edges of the tires.
Technical Specifications
| Brand | TOYOTA |
|---|---|
| Weight | 0.500 kg |
Compatible Vehicles
| Make | Model | Engine | Year | Notes |
|---|---|---|---|---|
| Toyota | Land Cruiser 100 (J100) | 4.5 (1FZFE) | 1998 - ... | END SUB-ASSY, TIE ROD, RH (FZJ105, 1FZFE) |
| Toyota | Land Cruiser 70 (J70) | 2.4 TD (2LT) | 1989 - 1990 | END SUB-ASSY, TIE ROD, RH (LJ71, 2LT) |
| Toyota | Land Cruiser 70 (J70) | 4.5 (1FZF) | 1999 - 2008 | END SUB-ASSY, TIE ROD, RH (FZJ79, 1FZF) |
| Toyota | Land Cruiser 70 (J70) | 4.2 D (1HZ) | 1999 - 2004 | END SUB-ASSY, TIE ROD, RH (HZJ70, 1HZ) |
| Toyota | Land Cruiser 70 (J70) | 4.0 (1GRFE) | 2007 - 2016 | END SUB-ASSY, TIE ROD, RH (GRJ71, 1GRFE) |
| Toyota | Land Cruiser 80 (J80) | 4.0 (3FE) | 1990 - 1998 | END SUB-ASSY, TIE ROD, RH (FJ80, 3FE) |
| Toyota | Land Cruiser 80 (J80) | 4.5 (1FZF) | 1992 - ... | END SUB-ASSY, TIE ROD, RH (FZJ80, 1FZF) |
| Toyota | Land Cruiser 80 (J80) | 4.2 TD (1HDFT) | 1992 - ... | END SUB-ASSY, TIE ROD, RH (HDJ80, 1HDFT) |
| Toyota | Land Cruiser 80 (J80) | 4.2 D (1HZ) | 1992 - 9999 | END SUB-ASSY, TIE ROD, RH (HZJ80, 1HZ) |
| Toyota | Lexus LX (J80) | 4.5 (1FZFE) | 1995 - 1998 | END SUB-ASSY, TIE ROD, RH (FZJ80, 1FZFE) |
Inquire About This Part
Not sure if this fits? Send us your VIN number and we will double check for you.
