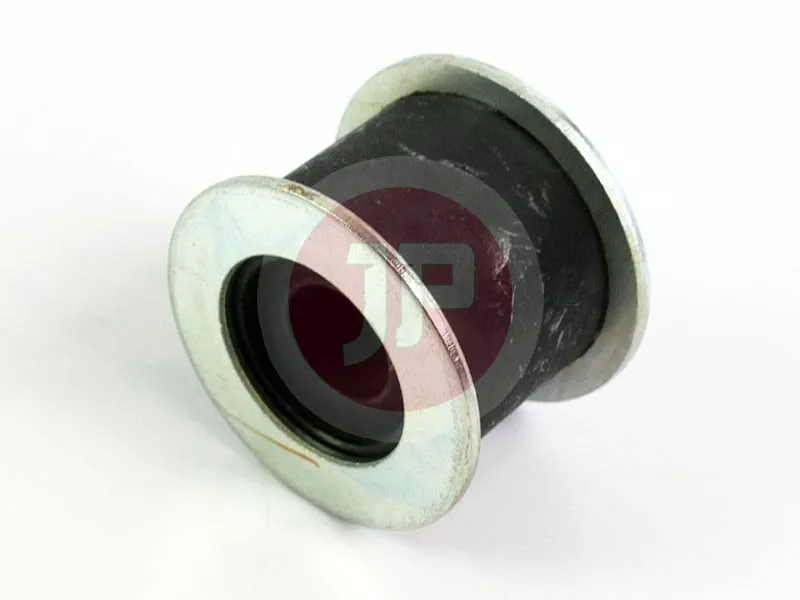

TOYOTA 52204-60042 Body Mount Cushion Sub-Assembly
Genuine part. Fitment information is for reference only. To ensure 100% compatibility, please send us a message with your VIN number before ordering.
Categories
Product Description
The genuine (OEM) TOYOTA 52204-60042 body mount cushion sub-assembly (Cushion Sub-Assy) is a premium vibration-damping and mounting component designed to provide a flexible yet stable connection between the vehicle's chassis and body. Its primary function is to absorb shocks resulting from road irregularities and effectively dampen noise, vibration, and harshness (NVH) generated by the engine and drivetrain, preventing them from transferring into the passenger cabin.
Technical Features and Construction
- Material Composition: High-grade vulcanized natural or synthetic rubber (elastomer) providing outstanding resistance to weather conditions, ozone, and automotive chemicals and oils.
- Structural Design: Features an integrated metal inner sleeve (bushing) that ensures precise alignment for the mounting bolt and prevents over-compression of the rubber during installation.
- Durability: Characterized by excellent fatigue strength and minimal permanent deformation, even under continuous heavy loads.
Significance of the Body Mount Cushion
This component plays a crucial role in maintaining the vehicle's structural integrity. It prevents direct metal-to-metal contact, thereby protecting body and frame attachment points from stress concentrations, cracking, and premature corrosion. Genuine OEM quality guarantees an exact fit and restores original factory ride comfort.
Common Symptoms of Wear
Rubber components deteriorate over time due to environmental exposure (temperature fluctuations, road salt) and mechanical stress. The most common signs of failure include:
- Increased vibration and road noise inside the cabin.
- Metallic knocking, squeaking, or rubbing noises when cornering, accelerating, or driving over uneven surfaces.
- Visibly evident cracks, tears, hardening, or crumbling of the rubber upon inspection.
- Minor misalignment or sagging of the body relative to the chassis during cornering.
To ensure safe and comfortable driving, prompt replacement of worn body mount cushions is recommended, preferably in pairs or as a complete set.
Technical Specifications
| Brand | TOYOTA |
|---|---|
| Weight | 0.150 kg |
Compatible Vehicles
| Make | Model | Engine | Year | Notes |
|---|---|---|---|---|
| Toyota | Land Cruiser 80 (J80) | 4.0 (3FE) | 1991 - 1998 | CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER (FJ80, 3FE) |
| Toyota | Land Cruiser 80 (J80) | 4.5 (1FZF) | 1992 - 9999 | CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER (FZJ80, 1FZF) |
| Toyota | Lexus LX (J80) | 4.5 (1FZFE) | 1995 - 1998 | CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER (FZJ80, 1FZFE) |
Inquire About This Part
Not sure if this fits? Send us your VIN number and we will double check for you.
