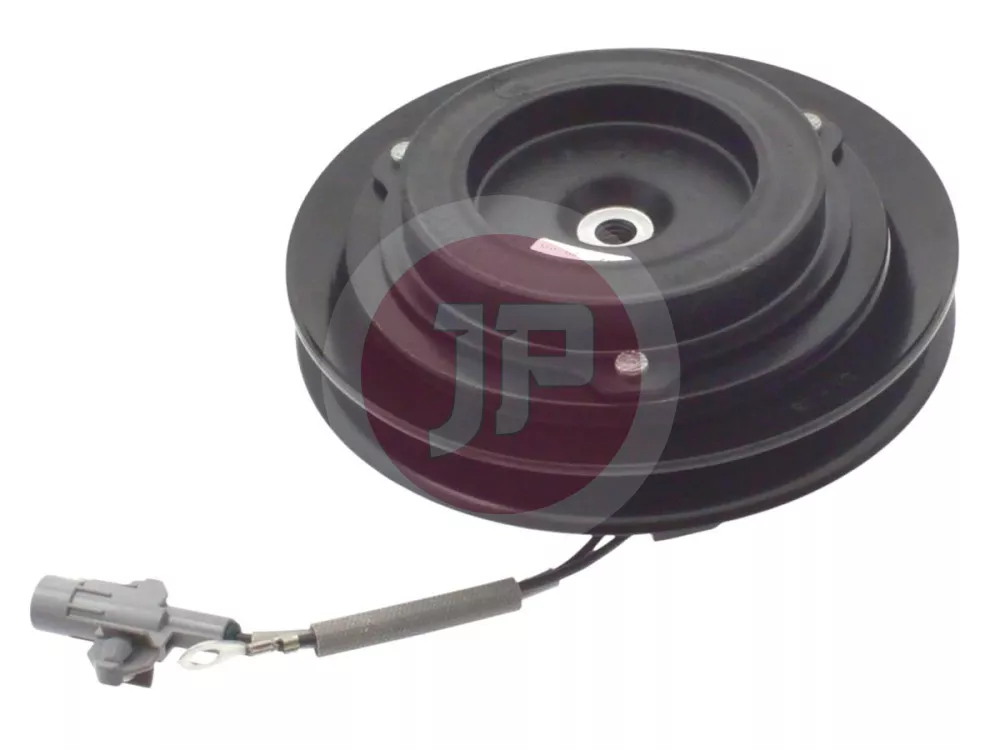

TOYOTA 88410-6A040 A/C Compressor Magnetic Clutch Assembly

The genuine TOYOTA 88410-6A040 A/C compressor magnetic clutch (Clutch Assy, Magnet) is a premium quality, original part designed to ensure the reliable and efficient operation of the vehicle's air conditioning system. The magnetic clutch electromechanically engages torque from the engine crankshaft to the A/C compressor when the climate control system is activated.

Operating Principle and Function

The A/C compressor magnetic clutch consists of three primary components: an electromagnetic field coil, a bearing-mounted pulley, and a clutch pressure plate (hub). When the climate control unit sends voltage to the magnetic coil, it generates a strong magnetic field. This magnetic force draws the pressure plate firmly against the continuously rotating pulley. Through this mechanical connection, the compressor shaft begins to rotate, initiating refrigerant compression.

Technical Specifications

• Manufacturer: TOYOTA (Genuine OEM part)
• Part Number: 88410-6A040
• Product Type: A/C Compressor Magnetic Clutch Assembly (Clutch Assy, Magnet)
• Nominal Voltage: 12 V
• Components: Magnetic coil, pulley with integrated bearing, clutch plate (pressure plate), and mounting hardware
• Material Composition: High wear-resistant, heat-treated steel alloy for maximum service life, and high-temperature-resistant electrical coil insulation

Common Symptoms of Failure

The magnetic clutch is subjected to continuous mechanical and thermal stresses and can wear out over time. The most frequent signs of failure include:

• Noisy Operation: If the pulley bearing wears out, a persistent growling or squealing noise can be heard from the engine bay, which may also occur when the A/C is turned off.
• A/C Not Cooling: If the magnetic coil burns out (open circuit) or the air gap between the clutch plate and the pulley becomes too large due to wear, the clutch fails to engage, preventing the compressor from operating.
• Slipping Clutch: If the friction surfaces are worn or contaminated, the clutch may slip, leading to excessive heat generation, a burning smell, and premature component failure.

To ensure proper operation, replacing the complete magnetic clutch assembly is recommended whenever any of the symptoms above occur. Genuine TOYOTA parts guarantee factory fitment, durability, and vibration-free performance.
