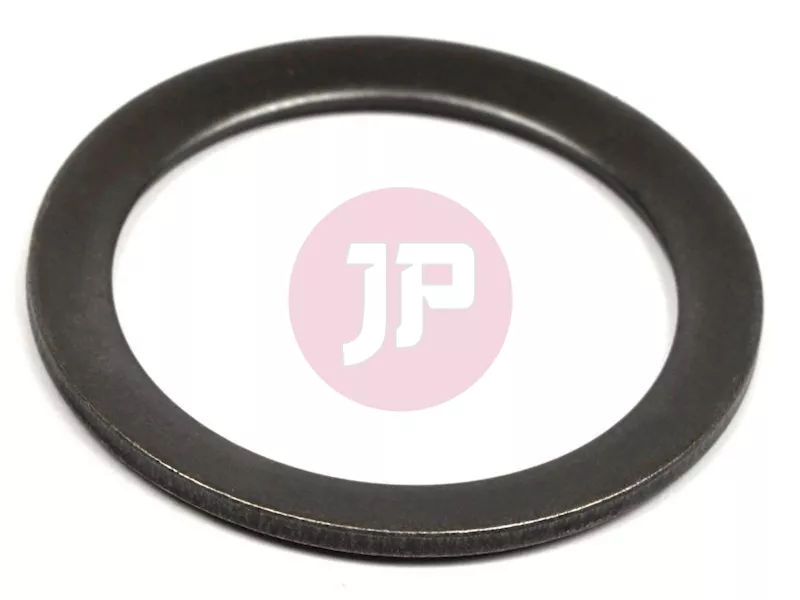

TOYOTA 90208-49001 Rear Axle Shaft Conical Washer

The genuine Toyota (SKU: 90208-49001) conical washer (WASHER, CONICAL) is a critical fastening component specifically engineered for rear axle shaft assemblies. This specialized washer maintains proper clamping force and prevents fastening bolts or nuts from backing out despite continuous vibrations and dynamic loads.

Technical Characteristics and Operating Principle

The conical washer (also referred to as a Belleville washer or disc spring) features spring-like properties. When torqued, the washer flattens slightly, thereby providing a constant axial preload across the bolted joint. This mechanism is crucial for the rear axle shaft assembly, where drivetrain torque and cornering forces place constant stress on the connection.

• Application Area: Rear axle shaft fastening, wheel hub assemblies.
• Material Grade: High-strength, hardened spring steel for lasting elasticity and resistance to permanent deformation.
• Surface Treatment: Anti-corrosion coating for protection against harsh environmental exposure (moisture, mud, road salt).
• Function: Vibration absorption, maintaining constant clamping force, preventing bolted joint self-loosening.

Importance and Signs of Failure

Conical washers used in rear axle shaft mountings may lose their elasticity over time due to metal fatigue or improper torque application. A worn or compromised washer presents a serious safety risk.

Typical signs of failure or wear include:

• Loose Fasteners: Repeated loosening of the axle shaft nut or retaining bolts.
• Visible Deformation: The washer has become permanently flattened, cracked, or structurally flawed.
• Corrosion: Heavy rust compromising the structural integrity of the spring steel.
• Unusual Noises: Metallic clicking or clunking sounds from the rear suspension during load transitions (acceleration or engine braking).

When servicing or maintaining the axle shaft, manufacturer guidelines always recommend replacing conical washers with brand-new genuine OEM components to ensure safe and dependable retention.
