NISSAN 13276-2W211 Fuel Injector Oil Seal
Genuine part. Fitment information is for reference only. To ensure 100% compatibility, please send us a message with your VIN number before ordering.
Categories
Product Description

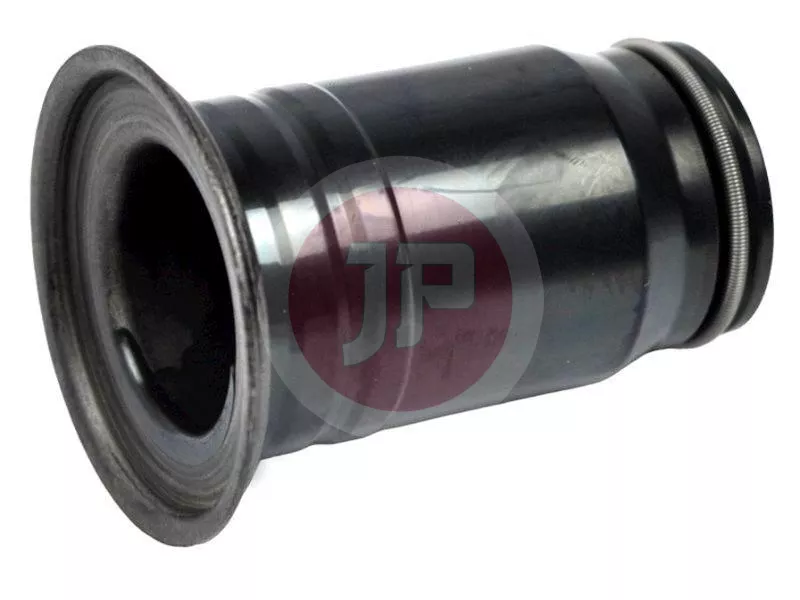

The genuine part with OEM number 13276-2W211 is an original fuel injector oil seal (SEAL-OIL) manufactured by NISSAN, specifically engineered for vehicles equipped with the ZD30 engine family. This specialized seal provides reliable sealing between the valve cover and the fuel injector passages, preventing engine oil leakage from the cylinder head area and sealing out external contaminants.
Technical Specifications
- Manufacturer: NISSAN (Genuine OEM part)
- Part Number: 13276-2W211
- Designation: Fuel injector seal / valve cover injector oil seal (SEAL-OIL)
- Application Area: Valve cover injector passage (ZD30 engine family)
- Material: High-temperature and oil-resistant synthetic elastomer with metal reinforcement frame
- Function: Leak-free containment of engine oil within the cylinder head cover around the injectors
Function and Failure Symptoms
The injection system of diesel engines is exposed to significant vibration and thermal stress. The seal is tasked with maintaining a continuous, resilient closure at the valve cover opening. Over time, high operating temperatures and aging can cause the sealing material to harden, lose elasticity, or crack. Typical failure symptoms include oil leaks or oil mist appearing around the injectors on top of the valve cover, increased engine oil consumption, and engine bay contamination.
Vehicle Compatibility
- Nissan Nissan Truck (D22) 3.0 TD [2001 - 2005] (SEAL-OIL (ZD30DDT))
- Nissan Np300 F/Sbs (D22SS) [2009 - 2011] (SEAL-OIL)
- Nissan Patrol (Y61) 3.0 TD [2000 - 2012] (SEAL-OIL (ZD30DDTI))
- Nissan Terrano2 (R20) [2002 - 2004] (SEAL-OIL)
- Nissan Urvan (E25) 3.0 TD [2003 - 2007] (SEAL-OIL (ZD30DDTI))
- Nissan Urvan (E25) 3.0 D [2001 - 2007] (SEAL-OIL (ZD30DD))
Technical Specifications
| Brand | NISSAN |
|---|---|
| Weight | 0.020 kg |
Compatible Vehicles
| Make | Model | Engine | Year | Notes |
|---|---|---|---|---|
| Nissan | Nissan Truck (D22) | 3.0 TD (ZD30DDT) | 2001 - 2005 | SEAL-OIL (ZD30DDT) |
| Nissan | Np300 F/Sbs (D22SS) | All Engines | 2009 - 2011 | SEAL-OIL |
| Nissan | Patrol (Y61) | 3.0 TD (ZD30DDTI) | 2000 - 2012 | SEAL-OIL (ZD30DDTI) |
| Nissan | Patrol (Y61) | All Engines | 2006 - 2006 | SEAL-OIL |
| Nissan | Terrano2 (R20) | All Engines | 2002 - 2004 | SEAL-OIL |
| Nissan | Urvan (E25) | 3.0 TD (ZD30DDTI) | 2003 - 2007 | SEAL-OIL (ZD30DDTI) |
| Nissan | Urvan (E25) | 3.0 D (ZD30DD) | 2001 - 2007 | SEAL-OIL (ZD30DD) |
Inquire About This Part
Not sure if this fits? Send us your VIN number and we will double check for you.
