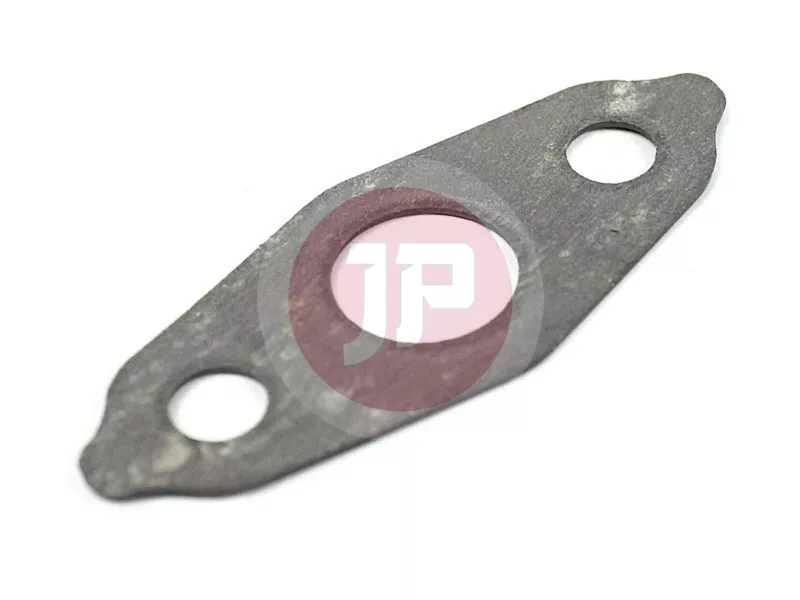

NISSAN 15196-31N02 Turbocharger Oil Drain Gasket
Genuine part. Fitment information is for reference only. To ensure 100% compatibility, please send us a message with your VIN number before ordering.
Categories
Product Description
The genuine OEM Nissan 15196-31N02 turbocharger oil drain gasket (GSKT-OIL T/C OU) provides a hermetic seal between the lower oil return port of the turbocharger bearing housing and the oil drain pipe. The engine oil that lubricates and cools the turbocharger flows back to the crankcase by gravity through this connection. Inadequate sealing leads to oil leakage which, if dripped directly onto hot exhaust components, can cause smoke, burning odors, or in extreme cases, a fire hazard; furthermore, oil loss can result in severe turbocharger and engine damage.
Technical Specifications
- Manufacturer: Nissan (Genuine OEM part)
- Part Number: 15196-31N02
- Part Type: Turbocharger oil drain / return flange gasket
- Fitting Position / Location: Turbocharger oil outlet (oil return pipe mating surface)
- Material Properties: Resistant to high temperatures and synthetic engine oils
- Typical Replacement Interval: Mandatory replacement whenever the turbocharger is repaired or replaced, or upon disassembly of the oil return pipe
Compatible Vehicles
- Nissan Cabstar (F24) 3.0 TD [2008 - 2012] (Engine code: ZD30DDTI)
- Nissan Cabstar (F24M) 3.0 TD [2006 - 2016] (Engine code: ZD30DDTI)
- Nissan Nissan Truck (D22) [1998 - 2001]
- Nissan Np300 F/Sbs (D22SS) [2009 - 2011]
- Nissan Nt-500 (G40M) [2013 - 2013]
- Nissan Nt400 Cabstar (F24FF) 3.0 TD [2017 - 2017] (Engine code: ZD30DDTI)
- Nissan Nt400 Cabstar (F24F) [2009 - 2011]
- Nissan Patrol (Y61) 3.0 TD [2000 - 2016] (Engine code: ZD30DDTI)
- Nissan Safari Pick Up (TY61) 3.0 TD [2012 - 2016] (Engine code: ZD30DDTI)
- Nissan Terrano2 (R20) [2002 - 2004]
- Nissan Tk55 (TK3) [2011 - 2011]
- Nissan Urvan (E25) 3.0 TD [2003 - 2007] (Engine code: ZD30DDTI)
- Nissan Urvan (E25) 3.0 D [2001 - 2007] (Engine code: ZD30DD)
Technical Specifications
| Brand | NISSAN |
|---|---|
| Weight | 0.005 kg |
Compatible Vehicles
| Make | Model | Engine | Year | Notes |
|---|---|---|---|---|
| Nissan | Cabstar (F24) | 3.0 TD (ZD30DDTI) | 2008 - 2012 | GSKT-OIL T/C OU (ZD30DDTI) |
| Nissan | Cabstar (F24M) | 3.0 TD (ZD30DDTI) | 2006 - 2016 | GSKT-OIL T/C OU (ZD30DDTI) |
| Nissan | Cabstar (F24M) | All Engines | 2006 - 2011 | GSKT-OIL T/C OU |
| Nissan | King Cab (D22) | All Engines | 1998 - 2000 | GSKT-OIL T/C OU |
| Nissan | Nissan Truck (D22) | All Engines | 1998 - 2001 | GSKT-OIL T/C OU |
| Nissan | Nissan Truck (D22) | 3.0 TD (ZD30DDT) | 2001 - 2005 | GSKT-OIL T/C OU (ZD30DDT) |
| Nissan | Np300 F/Sbs (D22SS) | All Engines | 2009 - 2011 | GSKT-OIL T/C OU |
| Nissan | Nt-500 (G40M) | All Engines | 2013 - 2013 | GSKT-OIL T/C OU |
| Nissan | Nt400 Cabstar (F24FF) | 3.0 TD (ZD30DDTI) | 2017 - 2017 | GSKT-OIL T/C OU (ZD30DDTI) |
| Nissan | Nt400 Cabstar (F24F) | All Engines | 2009 - 2011 | GSKT-OIL T/C OU |
| Nissan | Nt400 Cabstar (F24F) | 3.0 Turbo (ZD30DDTI) | 2008 - 2012 | GSKT-OIL T/C OU (ZD30DDTI) |
| Nissan | Patrol (Y61) | 3.0 TD (ZD30DDTI) | 2000 - 2016 | GSKT-OIL T/C OU (ZD30DDTI) |
| Nissan | Patrol (Y61) | All Engines | 2000 - 2006 | GSKT-OIL T/C OU |
| Nissan | Safari Pick Up (TY61) | 3.0 TD (ZD30DDTI) | 2012 - 2016 | GSKT-OIL T/C OU (ZD30DDTI) |
| Nissan | Terrano2 (R20) | All Engines | 2002 - 2004 | GSKT-OIL T/C OU |
| Nissan | Tk55 (TK3) | All Engines | 2011 - 2011 | GSKT-OIL T/C OU |
| Nissan | Urvan (E25) | 3.0 TD (ZD30DDTI) | 2003 - 2007 | GSKT-OIL T/C OU (ZD30DDTI) |
| Nissan | Urvan (E25) | 3.0 D (ZD30DD) | 2001 - 2007 | GSKT-OIL T/C OU (ZD30DD) |
Inquire About This Part
Not sure if this fits? Send us your VIN number and we will double check for you.
