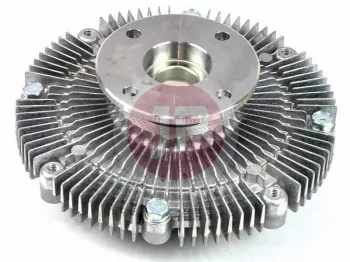

NISSAN 21082-VB00A Viscous Fan Clutch

The genuine OEM NISSAN 21082-VB00A viscous fan clutch (cooling fan coupling) is a vital component of the engine cooling system. Its function is to regulate the cooling fan speed in response to engine operating temperature, maintaining optimal thermal balance and preventing engine overheating.

Operating Principle and Features

The viscous clutch operates using a bimetallic sensor that detects the temperature of the air flowing through the radiator. When the engine warms up, the bimetal valve opens, allowing specialized silicone oil to flow into the working chamber. This increases internal viscous shear friction, driving the fan at higher speeds to enhance airflow. When the engine is cold, the fluid returns to the reservoir chamber and disengages the clutch, reducing parasitic engine load and improving fuel efficiency.

Technical Specifications

• Part Type: Viscous fan clutch (Coupling Assy)
• Manufacturer: NISSAN (Genuine OEM part)
• Operating Principle: Thermal bimetallic regulation, silicone oil-filled viscous coupling
• Mounting Position: Engine bay, mounted on the water pump shaft, between the cooling fan blade and the engine

Vehicle Compatibility

This genuine part is specifically compatible with the following vehicle:

• Nissan Patrol (Y61) 4.2D

Symptoms of Failure and Importance

Deterioration or failure of the viscous clutch (such as silicone fluid leakage or bimetal fatigue) can result in serious engine problems. The most common symptoms include:

• Engine overheating, especially in slow-moving traffic or at idle.
• The cooling fan permanently operating at maximum speed (continuous loud roaring noise even when the engine is cold), which raises fuel consumption and reduces engine power.
• The fan turns freely by hand with no resistance when the engine is hot and turned off.
• Visible silicone fluid leaks on the clutch housing.

Timely replacement of a malfunctioning viscous clutch is critical to avoid cylinder head distortion, gasket failure, and severe engine damage caused by overheating.
