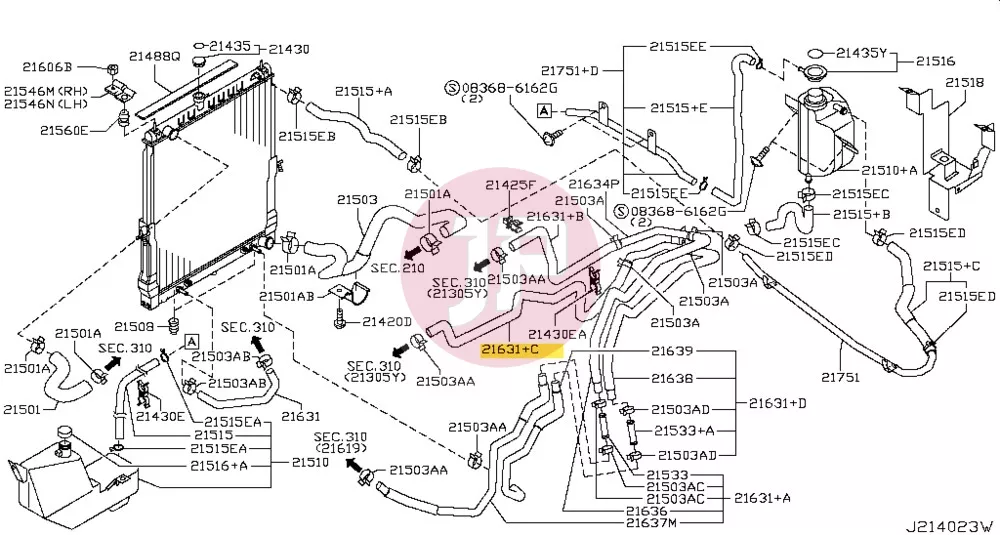

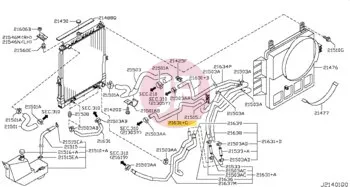

NISSAN 21634-VC200 Automatic Transmission Oil Cooler Hose

The NISSAN 21634-VC200 genuine (OEM) automatic transmission oil cooler hose is a critical component in the automatic transmission hydraulic system. Its function is to safely route high-temperature, high-pressure transmission fluid from the transmission to the oil cooler radiator and return the cooled fluid.

Technical Characteristics and Material Construction

This flexible hose is manufactured from materials specifically engineered to resist the chemical effects of automatic transmission fluids (ATF) and high operating temperatures:

• Oil-resistant inner rubber layer: Special synthetic rubber (e.g., NBR or HNBR) that resists the aggressive additives of ATF fluids, preventing softening or delamination of the inner hose wall.
• Fabric reinforcement: High-tensile synthetic fiber internal braided reinforcement that provides the required pressure resistance during system pressure peaks.
• Weather- and heat-resistant outer cover: Protects the hose from high engine bay temperatures, ozone, road grime, and mechanical abrasion.

Role and Importance of the Transmission Oil Cooler Hose

Automatic transmissions generate a significant amount of heat during operation. If the transmission fluid overheats, it loses its lubricating and viscosity properties, which can cause accelerated wear on internal clutch packs (friction plates) and lead to total transmission failure. The flexible rubber hose provides the connection between rigid metal lines and the moving engine/transmission assembly, effectively absorbing engine vibrations.

Signs of Wear and Failure

Rubber hoses undergo a natural aging process due to continuous thermal load and environmental influences. Regular inspection is recommended, particularly upon noticing the following symptoms:

• Oil leakage or seepage: Reddish or brownish oil spots at connections or across the hose surface.
• Material aging: Cracking, hardening, or conversely, abnormal softening of the rubber hose wall.
• Mechanical damage: Chafing caused by contact with other components in the engine compartment.
• Low transmission fluid level: Reduced oil levels caused by a leaking hose can lead to shifting difficulties, slipping gears, or transmission overheating.
