NISSAN 27163-1LA1A Heater Actuator Lever Gear

The genuine NISSAN 27163-1LA1A heater actuator lever gear (OEM designation: LEVER HEATER) is a critical mechanical component of the vehicle's heating, ventilation, and air conditioning (HVAC) system. This precision gear transfers the rotational torque of the heater actuator motor to the air blend flaps, enabling accurate regulation of hot and cold airflow into the passenger cabin.

Operating Principle and Importance

Automatic or manual climate control systems in modern vehicles use electric actuator motors to move the flaps responsible for air distribution. The heater actuator gear provides the mechanical linkage between the actuator shaft and the air flaps. If this component is damaged, the system cannot properly regulate the temperature or direction of the incoming air.

Common Symptoms of Failure

• Clicking or cracking noises: Rhythmic noises coming from behind the dashboard usually indicate worn or broken gear teeth as the actuator motor attempts to turn a jammed flap.
• Temperature regulation issues: The system only blows cold or only hot air, regardless of the set temperature.
• Uneven air distribution: Airflow cannot be directed to the windshield, footwell, or center vents.

Technical Specifications

• Manufacturer: NISSAN (Genuine OEM part)
• Part Number: 27163-1LA1A
• Part Type: Heater actuator gear / lever (Lever Heater)
• Material: High-strength, heat-stabilized plastic (PA66 or POM) resistant to continuous mechanical stress and temperature fluctuations.

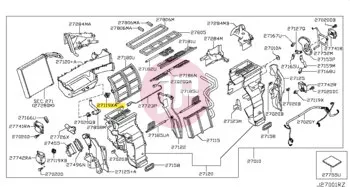

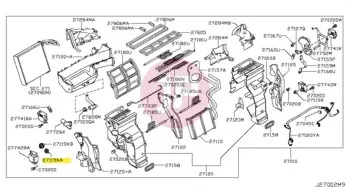

• Installation Position: Under the dashboard, between the actuator motor mounted on the heater box (HVAC unit) and the blend flaps.
