NISSAN 27180-JA10A Front Heater Door

The genuine OEM Nissan 27180-JA10A front heater door (factory designation: DOOR-FRONT HEATER) is a vital internal structural component of the vehicle's heating, ventilation, and air conditioning (HVAC) system. This part regulates and distributes airflow entering the passenger compartment, ensuring optimal climate comfort and safe visibility through effective windshield defogging.

Operating Principle and Function

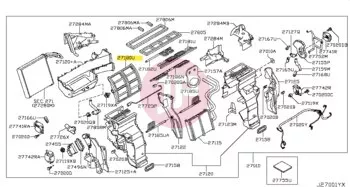

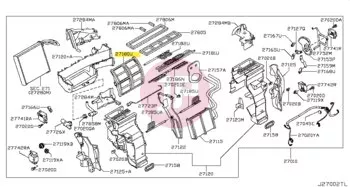

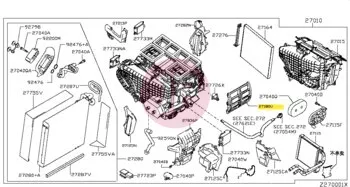

The front heater door is located inside the heater core assembly (HVAC housing). Its function is to direct conditioned air toward the selected ventilation paths (windshield defrost, footwell, or dashboard center vents). Movement of the door is controlled either via a mechanical linkage (cable) or an electric blend door actuator based on inputs from the climate control panel. Precise sealing of the door is critical to prevent unwanted air leakage into inactive air channels.

Technical Characteristics and Specifications

• Manufacturer: NISSAN (Genuine OEM part)
• Component Type: Front heater door / blend flap (DOOR-FRONT HEATER)
• Material: Premium-grade, highly heat-resistant, and dimensionally stable plastic composite (ABS/PA) engineered to withstand extreme temperatures from the heater core as well as chilled air from the A/C evaporator.
• Sealing: Equipped with a dedicated foam or rubber perimeter seal to provide airtight closure, vibration dampening, and quiet operation.
• Installation Location: Front heater and A/C distribution housing (HVAC module).

Typical Symptoms of Failure

Over time, heater blend doors can degrade due to continuous thermal cycling and mechanical stress. Common signs of failure include:

• Improper Airflow Direction: Air fails to blow through the selected vents or remains permanently stuck in one position.
• Abnormal Noises: Clicking, snapping, or buzzing sounds coming from behind the dashboard when changing ventilation modes, indicating a broken hinge, damaged shaft, or stripped gears.
• Defrosting Issues: The windshield defroster fails to clear condensation properly because the flap cannot fully channel airflow toward the windshield.

Because replacing a heater blend door typically requires partial or complete removal of the dashboard assembly, using a genuine Nissan OEM replacement is strongly recommended to prevent premature failure and avoid costly repeat labor.
