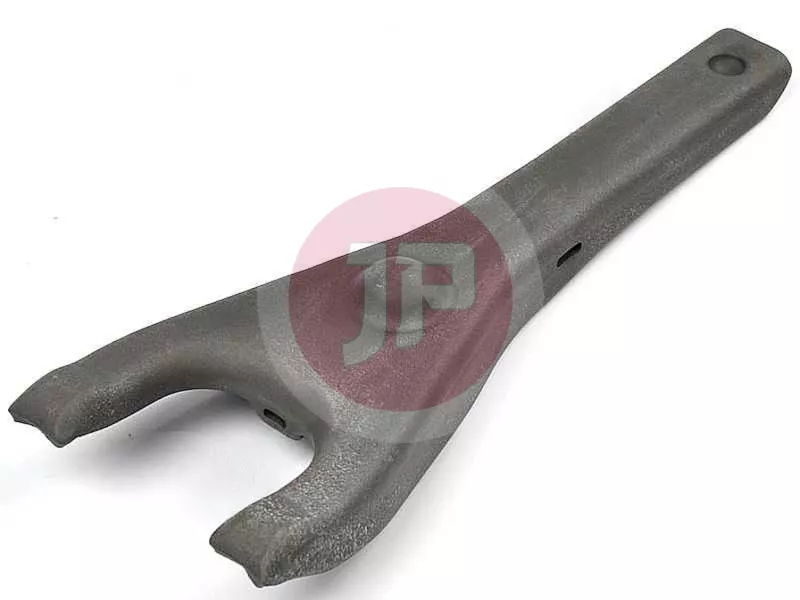

NISSAN 30531-VB000 Clutch Release Fork

The genuine NISSAN (OEM: 30531-VB000) clutch release fork (LEVER W/D) is a key structural component of the clutch system in vehicles equipped with a manual transmission. Its role is the precise transmission of the actuating force generated when depressing the clutch pedal to the release bearing, ensuring smooth disengagement and engagement of the power flow between the engine and transmission.

Key Technical Features and Construction:

• Material Quality: Heavy-duty, hardened steel alloy engineered to withstand high mechanical stress and fatigue fractures.
• Precision Engineering: Dimensional accuracy conforming to OEM specifications guarantees an exact fit at pivot points and release bearing contact surfaces.
• Wear Resistance: Critical contact points receive a specialized surface treatment to minimize friction-induced wear.

Role and Operation of the Clutch Release Fork:

When the clutch pedal is depressed, the hydraulic clutch slave cylinder (or clutch cable in mechanically actuated systems) displaces the outer arm of the release fork. Pivoting around its fixed pivot point, the fork's inner prongs push the release bearing forward, which presses directly against the diaphragm spring of the clutch pressure plate. This action disengages the clutch disc from the flywheel, enabling seamless gear shifting.

Typical Symptoms of Failure or Wear:

• Difficult Gear Shifting: If the fork bends or develops stress cracks, it cannot displace the release bearing sufficiently, preventing the clutch from disengaging fully.
• Unusual Noises: Metallic squeaking or clicking when depressing the clutch pedal, pointing to wear at the pivot points or the fork's contact tabs.
• Altered Pedal Feel: A soft, spongy pedal feel or sudden increased resistance when depressing the pedal.
• Structural Fracture: In extreme cases, material fatigue can cause the fork to break, leading to an immediate and complete clutch system failure.

During a clutch system overhaul or clutch kit replacement, a thorough inspection of the release fork's condition and replacement if necessary is highly recommended to avoid subsequent, costly repeated disassembly.
