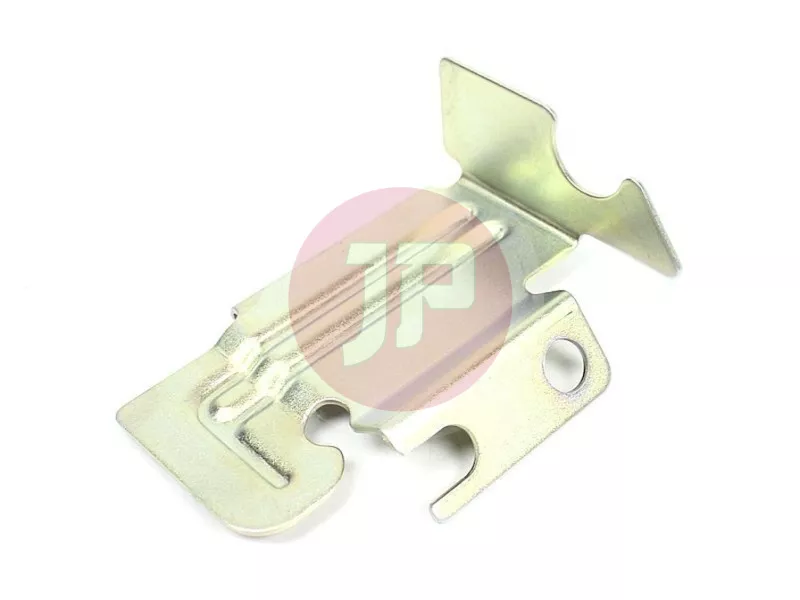

NISSAN 30670-01J0A Clutch Slave Cylinder Heat Shield Insulator

The genuine NISSAN 30670-01J0A clutch slave cylinder heat shield (Insulator Assy) is a premium-quality protective component designed directly by the vehicle manufacturer. Its primary function is to provide effective thermal protection for the hydraulic clutch slave cylinder and associated lines against extreme radiant heat generated within the engine compartment and near the exhaust system.

Technical Features and Construction

• Material Composition: Pressed aluminum alloy or multi-layer metal-composite structure with excellent heat-reflective properties, minimizing heat transfer.
• Design: Formed to OEM specifications to fit precisely around the slave cylinder, ensuring adequate airflow and thermal insulation.
• Durability: Highly resistant to elevated temperatures, vibration, road splash, moisture, mud, and corrosive substances.
• Mounting Location: Positioned directly above/adjacent to the clutch slave cylinder, between the heat source (exhaust pipe, catalytic converter) and the hydraulic unit.

Function and Importance of the Heat Shield

The clutch operating cylinder functions hydraulically using brake fluid. Without protection, intense radiant heat emanating from the exhaust system directly impinges upon the slave cylinder, causing the following risks:

• Fluid Overheating: Hydraulic fluid may boil, introducing vapor bubbles into the system, leading to a spongy clutch pedal and loss of clutch disengagement.
• Seal Degradation: Internal rubber seals and dust boots prematurely degrade, harden, and crack under severe heat, resulting in hydraulic fluid leakage.

Signs of Wear and Failure

Replacement of the heat shield may be necessary in the following cases:

• Corrosion and Mechanical Damage: Oxidation around mounting points, or deformation and cracking due to physical impact (e.g., road debris).
• Engine Bay Noise: A loose or damaged plate can produce metallic rattling or buzzing resonance at specific engine speeds.
• Recurring Clutch Overheating Issues: If the shield is missing or damaged, clutch operation may become erratic during prolonged trips or heavy stop-and-go driving.
