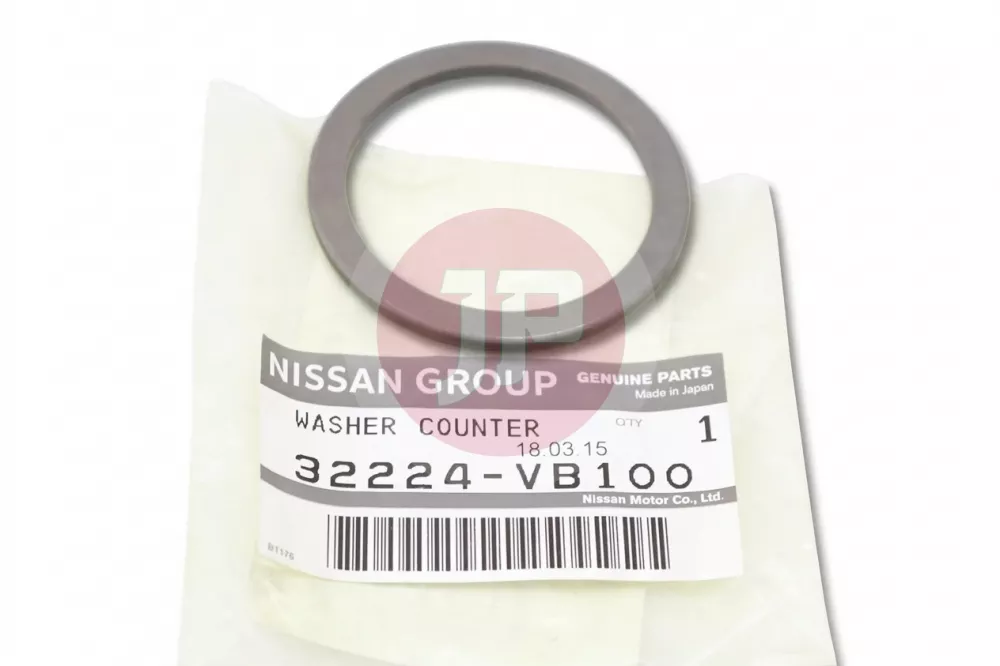

NISSAN 32224-VB100 Countershaft Thrust Washer

The genuine OEM NISSAN 32224-VB100 countershaft washer (also known as a shim or thrust washer) is a critical precision component within the internal mechanism of manual transmissions. Its function is to accurately adjust and limit the axial end play of the countershaft, ensuring optimal gear engagement and smooth, quiet transmission operation.

Technical Characteristics and Functions:

• Axial Shimming: Minimizes longitudinal shaft movement, preventing uneven gear wear and undesirable vibrations.
• Friction Reduction: Features a specially machined surface to reduce direct friction between the rotating shaft and the rigid transmission casing or adjacent components.
• Premium Material Quality: Manufactured from high-strength, hardened steel that resists high mechanical loads, continuous pressure, and elevated temperatures within the gearbox.

Typical Symptoms of Wear or Failure:

In the event of natural wear or damage to the countershaft washer, the following issues may occur:

• Metallic Whining or Rumbling: Due to increased axial end play, gears do not mesh properly, resulting in elevated noise, especially while driving in gear.
• Difficulty Shifting Gears: If the shaft shifts out of position, gear synchronization becomes inaccurate, making gear changes difficult.
• Popping Out of Gear: Under load, the transmission may slip into neutral due to shaft instability.
• Metallic Particles in Transmission Fluid: Tiny metal particles shedding from the worn washer contaminate the lubricant, which can lead to premature failure of other gearbox components.

During transmission overhaul or repair, inspecting and replacing shims and thrust washers as needed is essential to ensure long-term, reliable operation.
