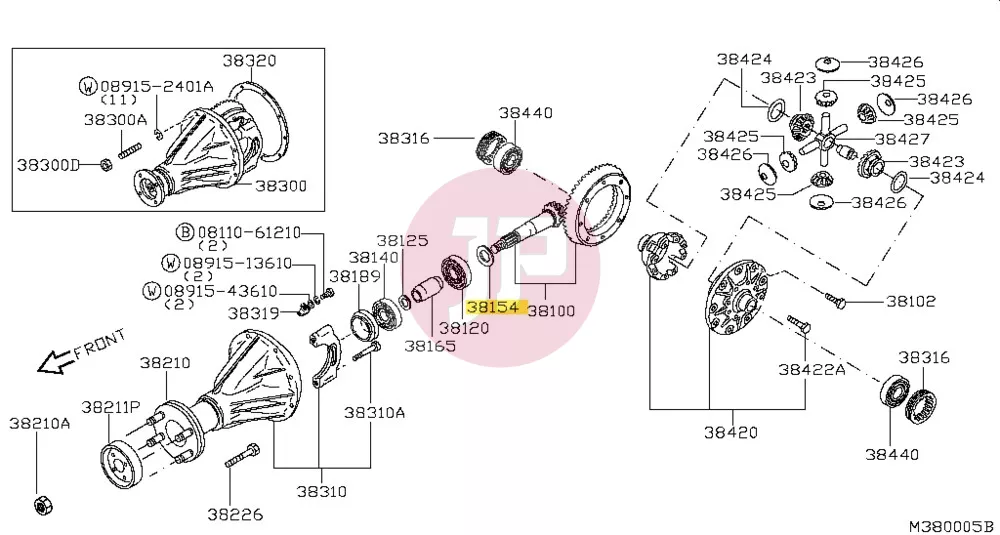

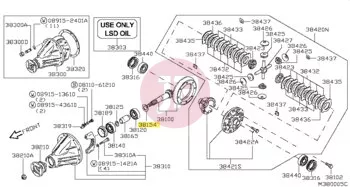

NISSAN 38151-01J5A Adjustment Shim

This genuine Nissan (OEM: 38151-01J5A) adjustment shim is a premium-quality, high-precision mechanical component engineered for the precise setting of axial clearance (end play) and gear backlash. It is primarily used in transmissions, differentials, and other drivetrain assemblies to fine-tune bearing preload and gear mesh.

Technical Features and Functions:

• Precision Dimensioning: Manufactured to extremely tight thickness tolerances to ensure a perfect mechanical fit and accurate shimming.
• Superior Material Quality: Made from hardened, high-strength alloy steel that withstands continuous axial loads and high operating temperatures.
• Wear Resistance: Specially surface-treated to minimize friction and premature wear.

Role and Importance of the Adjustment Shim:

During the assembly of drivetrain components, precise shimming is essential due to manufacturing tolerances. Selecting the correct shim thickness ensures that bevel gears and ring gears engage with an optimal contact pattern. Improper shimming can lead to excessive friction, overheating, or conversely, excessive play, resulting in premature failure of drivetrain components.

Symptoms of Failure or Incorrect Shimming:

• Increased mechanical noise, humming, or whining from the differential or transmission.
• Abnormal drivetrain vibration under load.
• Metallic shavings in the gear oil, indicating rapid wear of gears or bearings.
• Premature bearing failure due to incorrect preload.
