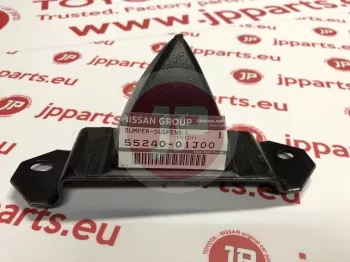

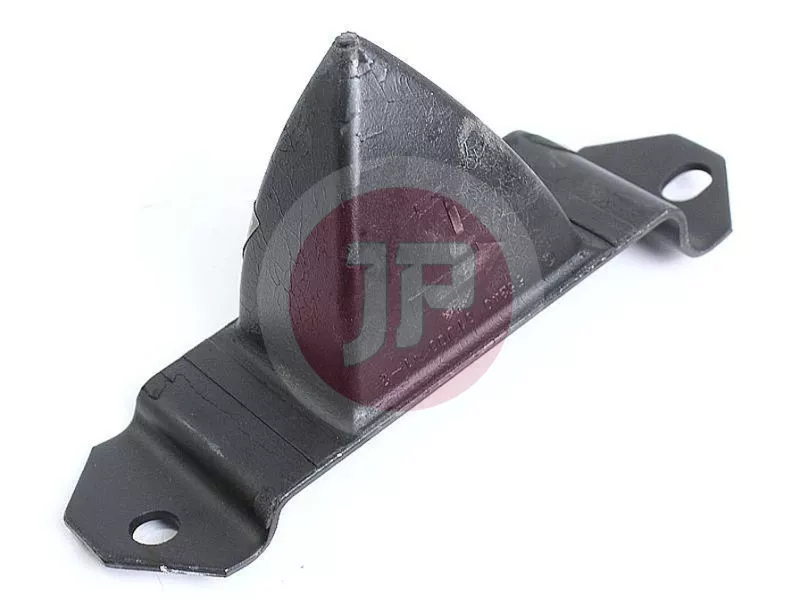

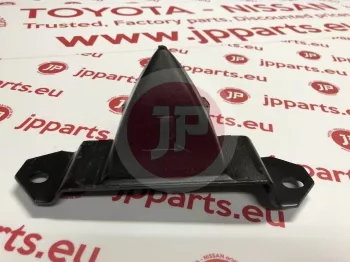

NISSAN 55240-01J00 Suspension Bump Stop

The genuine Nissan (Part Number: 55240-01J00) suspension bump stop (Bumper-Suspension) is an essential safety and comfort component of the vehicle's suspension system. Its primary function is to limit the maximum compression of the shock absorber, preventing direct metal-to-metal contact (bottoming out) of suspension components under extreme road imperfections or maximum load conditions.

Technical Features and Construction

This premium genuine part is manufactured in accordance with strict OEM specifications, ensuring a perfect fit and long service life. Features of the bump stop include:

• Material Composition: High-density microcellular polyurethane elastomer or specialized vulcanized rubber, offering exceptional energy absorption capacity.
• Resistance: Highly resistant to environmental factors, road salt, moisture, engine oil, and extreme temperature fluctuations.
• Design: Progressive geometric profile that delivers a damping effect proportional to the increasing load.

Role and Importance of the Suspension Bumper

The suspension bump stop is not merely a protective element, but also actively contributes to the vehicle's driving stability. During hard cornering or sudden directional changes, it acts as an auxiliary spring, reducing body roll. Additionally, it protects the internal valving and seals of the shock absorber from catastrophic mechanical damage.

Typical Symptoms of Wear

Subjected to continuous physical stress, the bump stop naturally ages and wears over time. Common signs of failure include:

• Visually apparent cracks, crumbling, or complete structural degradation of the material.
• Metallic knocking or clunking noises when driving over deep potholes (suspension bottoming out).
• Premature leakage or failure of the shock absorber.

To maintain optimal suspension operation and driving safety, replacing damaged or deteriorated bump stops without delay is recommended, preferably in pairs across both sides of the axle.
