TOYOTA
04477-60010

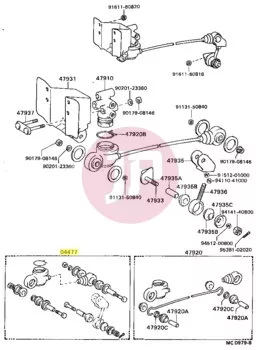

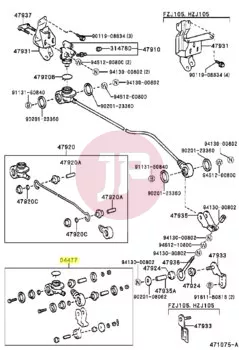

TOYOTA 04477-60010 Brake Proportioning Valve Bush and Boot Kit
111.70 EUR
87.90 EUR + 23.80 EUR VAT
Hurry, only 1 left in stock!
Genuine part. Fitment information is for reference only. To ensure 100% compatibility, please send us a message with your VIN number before ordering.
Categories
In Stock & Ready to Ship
Genuine Quality
Secure Checkout
Product Description
The genuine TOYOTA 04477-60010 part is a bushing and boot repair kit designed for the mechanical actuating spring of the Load Sensing Proportioning Valve (LSPV). The load-dependent brake proportioning valve modulates hydraulic brake pressure distributed to the rear brakes based on the vehicle's rear axle load, preventing premature rear wheel lockup under unladen or partially laden conditions.
The rubber dust boots and bushings included in this repair kit protect the spring linkage components against dust, water, and mud, while ensuring precise, play-free force transmission between the suspension and the brake pressure control valve. Worn or cracked dust boots allow contaminants and moisture to enter, which can lead to linkage corrosion, binding, and improper brake force distribution.
Technical Specifications:
- Manufacturer: TOYOTA (Genuine OEM part)
- Part Number: 04477-60010
- Application: Bush & boot kit for load sensing proportioning valve spring
- Fitting Position: Rear suspension / brake proportioning valve linkage
- Material: Weather- and chemical-resistant EPDM/NBR rubber and wear-resistant bushing materials
Compatible Vehicle Models:
- Toyota 4Runner (N210) 2.4 [1988 - 1995] (RN100, 22R)
- Toyota 4Runner (N60) 2.4 TD [1983 - 1986] (LN65, 2LT)
- Toyota 4Runner (N60) 2.4 [1987 - 1989] (RN50, 22R)
- Toyota Coaster (B20/B30) [1986 - 1993]
- Toyota Coaster (B40/B50) 4.2 D [1993 - 1999] (1HZ)
- Toyota Dyna / Toyoace (U100/U200/Y100) [1995 - ...]
- Toyota Dyna / Toyoace (U300/U400/Y200) [1995 - 9999]
- Toyota Dyna / Toyoace (U60-U90/Y50-Y80) [1984 - 1995]
- Toyota Hiace (H100) [1982 - 1985]
- Toyota Hiace (H200) [1982 - 1985]
- Toyota Hiace (H50-H90) [1982 - ...]
- Toyota Hilux (N50/N60) 2.2 [1983 - 1986] (YN57, 4YC)
- Toyota Hilux (N50/N60) 2.4 TD [1983 - 1998] (LN60, 2LT)
- Toyota Hilux (N80-N110) 2.4 TD [1988 - 1991] (LN130, 2LT)
- Toyota Hilux (N80-N110) 2.4 [1991 - ...] (RN106, 22R)
- Toyota Hilux (N80-N110) 3.0 TD [1993 - 9999] (KZN130, 1KZT)
- Toyota Land Cruiser 100 (J100) 4.5 [1998 - 1999] (FZJ100, 1FZFE)
- Toyota Land Cruiser 100 (J100) 4.7 [1999 - 2002] (UZJ100, 2UZFE)
- Toyota Land Cruiser 100 (J100) 4.2 D [2002 - ...] (HZJ105, 1HZ)
- Toyota Land Cruiser 40 (J40) [1980 - 1985]
- Toyota Land Cruiser 60 (J60) 4.0 [1980 - 1987] (FJ60, 3FE)
- Toyota Land Cruiser 70 (J70) 3.4 TD [1984 - 1990] (BJ70, 13BT)
- Toyota Land Cruiser 70 (J70) 4.2 D [1990 - 1992] (FJ70, 1HZ)
- Toyota Land Cruiser 70 (J70) 2.4 TD [1992 - 1993] (LJ72, 2LT)
- Toyota Land Cruiser 70 (J70) 4.5 [1993 - 2001] (FZJ70, 1FZF)
- Toyota Land Cruiser 70 (J70) 3.0 TD [1993 - 1996] (KZJ77, 1KZT)
- Toyota Land Cruiser 70 (J70) 3.5 D [1993 - 1994] (PZJ70, 1PZ)
- Toyota Land Cruiser 80 (J80) 4.0 [1990 - 1998] (FJ80, 3FE)
- Toyota Land Cruiser 80 (J80) 4.5 [1992 - ...] (FZJ80, 1FZF)
- Toyota Lexus LX (J80) 4.5 [1995 - 1998] (FZJ80, 1FZFE)
- Toyota LiteAce / TownAce (M30/M40/R20/R30) [1985 - ...]
- Toyota Model-F / Space Cruiser (R20/R30) [1982 - 2000]
- Toyota Tacoma (RZN140) 2.7 [1995 - 2000] (RZN140, 3RZFE)
- Toyota Tacoma (RZN161) 2.7 [1995 - 2000] (RZN161, 3RZFE)
- Toyota Tundra (GSK30) [1999 - 2004]
Technical Specifications
| Brand | TOYOTA |
|---|---|
| Weight | 0.214 kg |
Compatible Vehicles
Genuine part. Fitment information is for reference only. To ensure 100% compatibility, please send us a message with your VIN number before ordering.
| Make | Model | Engine | Year | Notes |
|---|---|---|---|---|
| Toyota | 4Runner (N210) | 2.4 (22R) | 1988 - 1995 | BUSH & BOOT KIT, LOAD SENSING SPRING (RN100, 22R) |
| Toyota | 4Runner (N60) | 2.4 TD (2LT) | 1983 - 1986 | BUSH & BOOT KIT, LOAD SENSING SPRING (LN65, 2LT) |
| Toyota | 4Runner (N60) | 2.4 (22R) | 1987 - 1989 | BUSH & BOOT KIT, LOAD SENSING SPRING (RN50, 22R) |
| Toyota | Coaster (B20/B30) | All Engines | 1986 - 1993 | BUSH & BOOT KIT, LOAD SENSING SPRING |
| Toyota | Coaster (B40/B50) | 4.2 D (1HZ) | 1993 - 1999 | BUSH & BOOT KIT, LOAD SENSING SPRING (1HZ) |
| Toyota | Dyna / Toyoace (U100/U200/Y100) | All Engines | 1995 - ... | BUSH & BOOT KIT, LOAD SENSING SPRING |
| Toyota | Dyna / Toyoace (U300/U400/Y200) | All Engines | 1995 - 9999 | BUSH & BOOT KIT, LOAD SENSING SPRING |
| Toyota | Dyna / Toyoace (U60-U90/Y50-Y80) | All Engines | 1984 - 1995 | BUSH & BOOT KIT, LOAD SENSING SPRING |
| Toyota | Hiace (H100) | All Engines | 1982 - 1985 | BUSH & BOOT KIT, LOAD SENSING SPRING |
| Toyota | Hiace (H200) | All Engines | 1982 - 1985 | BUSH & BOOT KIT, LOAD SENSING SPRING |
| Toyota | Hiace (H50-H90) | All Engines | 1982 - ... | BUSH & BOOT KIT, LOAD SENSING SPRING |
| Toyota | Hilux (N50/N60) | 2.2 (4YC) | 1983 - 1986 | BUSH & BOOT KIT, LOAD SENSING SPRING (YN57, 4YC) |
| Toyota | Hilux (N50/N60) | 2.4 TD (2LT) | 1983 - 1998 | BUSH & BOOT KIT, LOAD SENSING SPRING (LN60, 2LT) |
| Toyota | Hilux (N80-N110) | 2.4 TD (2LT) | 1988 - 1991 | BUSH & BOOT KIT, LOAD SENSING SPRING (LN130, 2LT) |
| Toyota | Hilux (N80-N110) | 2.4 (22R) | 1991 - ... | BUSH & BOOT KIT, LOAD SENSING SPRING (RN106, 22R) |
| Toyota | Hilux (N80-N110) | 3.0 TD (1KZT) | 1993 - 9999 | BUSH & BOOT KIT, LOAD SENSING SPRING (KZN130, 1KZT) |
| Toyota | Land Cruiser 100 (J100) | 4.5 (1FZFE) | 1998 - 1999 | BUSH & BOOT KIT, LOAD SENSING SPRING (FZJ100, 1FZFE) |
| Toyota | Land Cruiser 100 (J100) | 4.7 (2UZFE) | 1999 - 2002 | BUSH & BOOT KIT, LOAD SENSING SPRING (UZJ100, 2UZFE) |
| Toyota | Land Cruiser 100 (J100) | 4.2 D (1HZ) | 2002 - ... | BUSH & BOOT KIT, LOAD SENSING SPRING (HZJ105, 1HZ) |
| Toyota | Land Cruiser 40 (J40) | All Engines | 1980 - 1985 | BUSH & BOOT KIT, LOAD SENSING SPRING |
| Toyota | Land Cruiser 60 (J60) | 4.0 (3FE) | 1980 - 1987 | BUSH & BOOT KIT, LOAD SENSING SPRING (FJ60, 3FE) |
| Toyota | Land Cruiser 70 (J70) | 3.4 TD (13BT) | 1984 - 1990 | BUSH & BOOT KIT, LOAD SENSING SPRING (BJ70, 13BT) |
| Toyota | Land Cruiser 70 (J70) | 4.2 D (1HZ) | 1990 - 1992 | BUSH & BOOT KIT, LOAD SENSING SPRING (FJ70, 1HZ) |
| Toyota | Land Cruiser 70 (J70) | 2.4 TD (2LT) | 1992 - 1993 | BUSH & BOOT KIT, LOAD SENSING SPRING (LJ72, 2LT) |
| Toyota | Land Cruiser 70 (J70) | 4.5 (1FZF) | 1993 - 2001 | BUSH & BOOT KIT, LOAD SENSING SPRING (FZJ70, 1FZF) |
| Toyota | Land Cruiser 70 (J70) | 3.0 TD (1KZT) | 1993 - 1996 | BUSH & BOOT KIT, LOAD SENSING SPRING (KZJ77, 1KZT) |
| Toyota | Land Cruiser 70 (J70) | 3.5 D (1PZ) | 1993 - 1994 | BUSH & BOOT KIT, LOAD SENSING SPRING (PZJ70, 1PZ) |
| Toyota | Land Cruiser 80 (J80) | 4.0 (3FE) | 1990 - 1998 | BUSH & BOOT KIT, LOAD SENSING SPRING (FJ80, 3FE) |
| Toyota | Land Cruiser 80 (J80) | 4.5 (1FZF) | 1992 - ... | BUSH & BOOT KIT, LOAD SENSING SPRING (FZJ80, 1FZF) |
| Toyota | Lexus LX (J80) | 4.5 (1FZFE) | 1995 - 1998 | BUSH & BOOT KIT, LOAD SENSING SPRING (FZJ80, 1FZFE) |
| Toyota | LiteAce / TownAce (M30/M40/R20/R30) | All Engines | 1985 - ... | BUSH & BOOT KIT, LOAD SENSING SPRING |
| Toyota | Model-F / Space Cruiser (R20/R30) | All Engines | 1982 - 2000 | BUSH & BOOT KIT, LOAD SENSING SPRING |
| Toyota | Tacoma (RZN140) | 2.7 (3RZFE) | 1995 - 2000 | BUSH & BOOT KIT, LOAD SENSING SPRING (RZN140, 3RZFE) |
| Toyota | Tacoma (RZN161) | 2.7 (3RZFE) | 1995 - 2000 | BUSH & BOOT KIT, LOAD SENSING SPRING (RZN161, 3RZFE) |
| Toyota | Tundra (GSK30) | All Engines | 1999 - 2004 | BUSH & BOOT KIT, LOAD SENSING SPRING |
