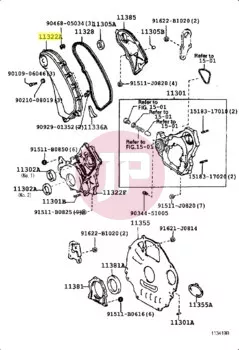

TOYOTA 11321-17020 Timing Belt Cover No. 1

The genuine Toyota 11321-17020 timing belt cover (Cover, Timing Belt, No.1) is a critical mechanical protection component of the engine timing system, engineered specifically for Toyota 4.2 TD (1HD-FT) powerplants. Its primary purpose is to physically isolate the timing belt, camshaft pulleys, and tensioner idlers from external contaminants, dust particles, moisture, as well as oil leaks and mechanical impacts within the engine bay. By ensuring proper sealing and shielding, it prevents belt wear, skipping, or breakage, which could lead to severe catastrophic engine damage.

Technical Specifications and Features:

• Manufacturer: Toyota (Genuine OEM part)
• Part Number: 11321-17020
• Part Type: Timing belt cover / casing (No. 1)
• Compatible Engine Code: Toyota 1HD-FT (4.2-liter inline-6 turbo diesel)
• Installation Position: Front face of engine, primary section of timing protection casing
• Material: High-temperature, vibration-resistant, and oil-resistant engineered polymer composite
• Function: Mechanical and dust protection for the timing belt and peripheral components, noise reduction

Vehicle Compatibility:

• Toyota Coaster (B40/B50) 4.2 TD [1995 - 1999] (COVER, TIMING BELT, NO.1 (1HDFT))
• Toyota Land Cruiser 80 (J80) 4.2 TD [1995 - 1998] (COVER, TIMING BELT, NO.1 (HDJ80, 1HDFT))

Typical Wear Signs and Replacement Reasons: Under continuous thermal cycling, aging, and exposure to oil vapors, the plastic cover can become brittle, leading to cracks around mounting tabs or cover warpage. A damaged, warped, or improperly secured cover significantly increases the risk of timing belt mechanical damage and contamination. Therefore, the structural integrity of the cover should always be inspected during timing service, and it must be replaced if damaged.
