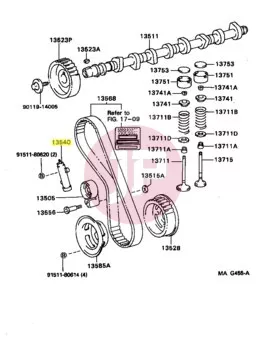

TOYOTA 13540-67020 Timing Belt Tensioner Assembly

The genuine Toyota 13540-67020 timing belt tensioner (tensioner assembly) is a critical component of the engine timing system. Its function is to ensure constant, optimal pre-tensioning of the timing belt across all engine speed and load ranges, while continuously compensating for tension variations resulting from thermal expansion and natural belt stretch. Maintaining correct belt tension prevents the belt from slipping or jumping teeth, thereby avoiding valve-to-piston contact and severe mechanical engine damage.

Symptoms of tensioner failure (such as fluid leakage, internal loss of hydraulic pressure, or mechanical jamming) include rattling or knocking noises during cold starts or acceleration, rough engine running, and timing inaccuracies. Replacing the tensioner simultaneously during timing belt service is strictly recommended.

Technical Specifications and References

• Manufacturer: TOYOTA (Genuine OEM part)
• Part Number: 13540-67020
• System: Engine Timing (Timing Belt Tensioner)
• Replacement / Alternative OEM Part Numbers: 13540-0L010 (135400L010), 13540-67010 (1354067010)

Vehicle Compatibility

• Toyota 4Runner (N180) 3.0 D-4D [1995 - ...] (Engine code: 1KD-FTV / KDN185)
• Toyota 4Runner (N180) 3.0 TD [1995 - ...] (Engine code: 1KZ-T / KZN185)
• Toyota 4Runner (N210) 3.0 D-4D [2002 - ...] (Engine code: 1KD-FTV / KDN215)
• Toyota 4Runner (N210) 3.0 TD [2002 - ...] (Engine code: 1KZ-TE / KZN215)
• Toyota Dyna / Toyoace (U300/U400/Y200) 3.0 D-4D [2001 - 2013] (Engine code: 1KD-FTV)
• Toyota Fortuner (GGN50) 3.0 D-4D [2005 - 2008] (Engine code: 1KD-FTV / KUN51)
• Toyota Fortuner (GGN50) 2.5 D-4D [2010 - ...] (Engine code: 2KD-FTV / KUN60)
• Toyota Hiace (H100) 3.0 TD [1993 - 2004] (Engine code: 1KZ-TE)
• Toyota Hiace (H200) 3.0 D-4D [2004 - 2008] (Engine code: 1KD-FTV / KDH200)
• Toyota Hiace (H200) 2.5 D-4D [2005 - ...] (Engine code: 2KD-FTV / KDH222)
• Toyota Hiace S.B.V. / Granvia (XH10/XH20) 3.0 TD [1995 - ...] (Engine code: 1KZ-TE)
• Toyota Hiace S.B.V. / Granvia (XH10/XH20) 2.5 D-4D [2001 - ...] (Engine code: 2KD-FTV)
• Toyota Hilux (N10/N20/N30) 3.0 D-4D [2004 - ...] (Engine code: 1KD-FTV / KUN15)
• Toyota Hilux (N10/N20/N30) 2.5 D-4D [2004 - 2012] (Engine code: 2KD-FTV / KUN26)
• Toyota Hilux (N140-N170) 3.0 TD [1999 - 2005] (Engine code: 1KZ-TE / KZN165)
• Toyota Hilux (N140-N170) 2.5 D-4D [2001 - ...] (Engine code: 2KD-FTV / KDN145)
• Toyota Hilux (N140-N170) 3.0 D-4D [2001 - 2005] (Engine code: 1KD-FTV / KDN145)
• Toyota Hilux (N80-N110) 3.0 TD [1993 - 1995] (Engine code: 1KZ-T / KZN130)
• Toyota Innova / Kijang (AN40) 2.5 D-4D [2004 - ...] (Engine code: 2KD-FTV / KUN40)
• Toyota Land Cruiser 70 (J70) 3.0 TD [1993 - 1996] (Engine code: 1KZ-T / KZJ70)
• Toyota Land Cruiser Prado (J120) 3.0 D-4D [2002 - ...] (Engine code: 1KD-FTV / KDJ120)
• Toyota Land Cruiser Prado (J150) 3.0 D-4D [2009 - ...] (Engine code: 1KD-FTV / KDJ150)
• Toyota Land Cruiser Prado (J90) 3.0 TD [1996 - 2002] (Engine code: 1KZ-T / KZJ90)
• Toyota Land Cruiser Prado (J90) 3.0 D-4D [1999 - 2002] (Engine code: 1KD-FTV / KDJ90)
