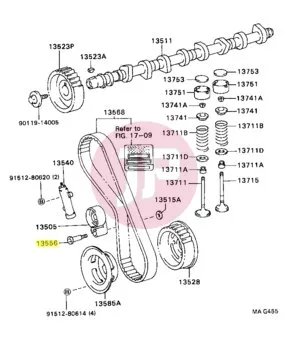

TOYOTA 13556-67010 Timing Belt Tensioner Shaft
Genuine part. Fitment information is for reference only. To ensure 100% compatibility, please send us a message with your VIN number before ordering.
Categories
OEM / Alternate Numbers
Product Description
Toyota genuine part number 13556-67010 is a precision mounting and pivot shaft for the timing belt tensioner/idler pulley (Shaft, Timing Belt Idler). This mechanical shaft provides a stable mounting base and pivot point for the timing belt tensioner assembly secured to the engine block or cylinder head, ensuring correct belt tracking and tension.
Function and Technical Significance
The timing belt tensioner shaft is essential for the precise operation of the engine's valve timing system. Its key functions include:
- Accurately positioning the timing belt tensioner pulley both axially and radially.
- Ensuring smooth, unhindered movement of the tensioner arm or bracket during hydraulic tensioner operation.
- Safely transferring dynamic belt vibrations and mechanical loads to the engine block.
Wear, deformation, or surface galling on the shaft can cause the tensioner pulley to run out of alignment, leading to premature timing belt wear, edge fraying, tooth jumping, or catastrophic belt failure. Checking the condition of this shaft and replacing it when necessary is critical during timing belt replacement.
Technical Specifications and Identifiers
- Manufacturer: Toyota (Genuine OEM part)
- Part Number: 13556-67010
- Superseded / Alternative Reference Number: 13556-0L010 (135560L010)
- Fitting Position: Engine bay, timing drive (tensioner pulley mounting shaft)
- Material: High-strength, heat-treated hardened steel
Compatible Vehicles
This timing belt tensioner shaft is applicable to the following Toyota models and diesel engines (1KZ-T, 1KZ-TE, 1KD-FTV, 2KD-FTV):
- Toyota 4Runner (N180) 3.0 D-4D [1995 - 9999] (KDN185, 1KDFTV)
- Toyota 4Runner (N180) 3.0 TD [1995 - 9999] (KZN185, 1KZT)
- Toyota 4Runner (N210) 3.0 TD [2002 - 9999] (KZN215, 1KZTE)
- Toyota 4Runner (N210) 3.0 D-4D [2002 - 9999] (KDN215, 1KDFTV)
- Toyota Dyna / Toyoace (U300/U400/Y200) 3.0 D-4D [2001 - ...] (1KDFTV)
- Toyota Fortuner (GGN50) 3.0 D-4D [2005 - 2008] (KUN51, 1KDFTV)
- Toyota Fortuner (GGN50) 2.5 D-4D [2010 - 9999] (KUN60, 2KDFTV)
- Toyota Hiace (H100) 3.0 TD [1993 - 2004] (1KZTE)
- Toyota Hiace (H200) 3.0 D-4D [2004 - 2017] (KDH200, 1KDFTV)
- Toyota Hiace (H200) 2.5 D-4D [2005 - 2019] (KDH200, 2KDFTV)
- Toyota Hiace S.B.V. / Granvia (XH10/XH20) 3.0 TD [1995 - ...] (1KZTE)
- Toyota Hiace S.B.V. / Granvia (XH10/XH20) 2.5 D-4D [2001 - ...] (2KDFTV)
- Toyota Hilux (N10/N20/N30) 2.5 D-4D [2004 - 2012] (KUN26, 2KDFTV)
- Toyota Hilux (N10/N20/N30) 3.0 D-4D [2004 - ...] (KUN16, 1KDFTV)
- Toyota Hilux (N140-N170) 3.0 TD [1999 - 2005] (KZN165, 1KZTE)
- Toyota Hilux (N140-N170) 2.5 D-4D [2001 - 9999] (KDN145, 2KDFTV)
- Toyota Hilux (N140-N170) 3.0 D-4D [2001 - 2005] (KDN145, 1KDFTV)
- Toyota Hilux (N80-N110) 3.0 TD [1993 - 1995] (KZN130, 1KZT)
- Toyota Innova / Kijang (AN40) 2.5 D-4D [2004 - ...] (KUN40, 2KDFTV)
- Toyota Land Cruiser 70 (J70) 3.0 TD [1993 - 1996] (KZJ70, 1KZT)
- Toyota Land Cruiser Prado (J120) 3.0 D-4D [2002 - ...] (KDJ120, 1KDFTV)
- Toyota Land Cruiser Prado (J150) 3.0 D-4D [2009 - ...] (KDJ150, 1KDFTV)
- Toyota Land Cruiser Prado (J90) 3.0 TD [1996 - 2002] (KZJ90, 1KZT)
- Toyota Land Cruiser Prado (J90) 3.0 D-4D [1999 - 2002] (KDJ90, 1KDFTV)
Technical Specifications
| Brand | TOYOTA |
|---|---|
| Weight | 0.080 kg |
Compatible Vehicles
| Make | Model | Engine | Year | Notes |
|---|---|---|---|---|
| Toyota | 4Runner (N180) | 3.0 D-4D (1KDFTV) | 1995 - 9999 | SHAFT, TIMING BELT IDLER (KDN185, 1KDFTV) |
| Toyota | 4Runner (N180) | 3.0 TD (1KZT) | 1995 - 9999 | SHAFT, TIMING BELT IDLER (KZN185, 1KZT) |
| Toyota | 4Runner (N210) | 3.0 TD (1KZTE) | 2002 - 9999 | SHAFT, TIMING BELT IDLER (KZN215, 1KZTE) |
| Toyota | 4Runner (N210) | 3.0 D-4D (1KDFTV) | 2002 - 9999 | SHAFT, TIMING BELT IDLER (KDN215, 1KDFTV) |
| Toyota | Dyna / Toyoace (U300/U400/Y200) | 3.0 D-4D (1KDFTV) | 2001 - ... | SHAFT, TIMING BELT IDLER (1KDFTV) |
| Toyota | Fortuner (GGN50) | 3.0 D-4D (1KDFTV) | 2005 - 2008 | SHAFT, TIMING BELT IDLER (KUN51, 1KDFTV) |
| Toyota | Fortuner (GGN50) | 2.5 D-4D (2KDFTV) | 2010 - 9999 | SHAFT, TIMING BELT IDLER (KUN60, 2KDFTV) |
| Toyota | Hiace (H100) | 3.0 TD (1KZTE) | 1993 - 2004 | SHAFT, TIMING BELT IDLER (1KZTE) |
| Toyota | Hiace (H200) | 3.0 D-4D (1KDFTV) | 2004 - 2017 | SHAFT, TIMING BELT IDLER (KDH200, 1KDFTV) |
| Toyota | Hiace (H200) | 2.5 D-4D (2KDFTV) | 2005 - 2019 | SHAFT, TIMING BELT IDLER (KDH200, 2KDFTV) |
| Toyota | Hiace S.B.V. / Granvia (XH10/XH20) | 3.0 TD (1KZTE) | 1995 - ... | SHAFT, TIMING BELT IDLER (1KZTE) |
| Toyota | Hiace S.B.V. / Granvia (XH10/XH20) | 2.5 D-4D (2KDFTV) | 2001 - ... | SHAFT, TIMING BELT IDLER (2KDFTV) |
| Toyota | Hilux (N10/N20/N30) | 2.5 D-4D (2KDFTV) | 2004 - 2012 | SHAFT, TIMING BELT IDLER (KUN26, 2KDFTV) |
| Toyota | Hilux (N10/N20/N30) | 3.0 D-4D (1KDFTV) | 2004 - ... | SHAFT, TIMING BELT IDLER (KUN16, 1KDFTV) |
| Toyota | Hilux (N140-N170) | 3.0 TD (1KZTE) | 1999 - 2005 | SHAFT, TIMING BELT IDLER (KZN165, 1KZTE) |
| Toyota | Hilux (N140-N170) | 2.5 D-4D (2KDFTV) | 2001 - 9999 | SHAFT, TIMING BELT IDLER (KDN145, 2KDFTV) |
| Toyota | Hilux (N140-N170) | 3.0 D-4D (1KDFTV) | 2001 - 2005 | SHAFT, TIMING BELT IDLER (KDN145, 1KDFTV) |
| Toyota | Hilux (N80-N110) | 3.0 TD (1KZT) | 1993 - 1995 | SHAFT, TIMING BELT IDLER (KZN130, 1KZT) |
| Toyota | Innova / Kijang (AN40) | 2.5 D-4D (2KDFTV) | 2004 - ... | SHAFT, TIMING BELT IDLER (KUN40, 2KDFTV) |
| Toyota | Land Cruiser 70 (J70) | 3.0 TD (1KZT) | 1993 - 1996 | SHAFT, TIMING BELT IDLER (KZJ70, 1KZT) |
| Toyota | Land Cruiser Prado (J120) | 3.0 D-4D (1KDFTV) | 2002 - ... | SHAFT, TIMING BELT IDLER (KDJ120, 1KDFTV) |
| Toyota | Land Cruiser Prado (J150) | 3.0 D-4D (1KDFTV) | 2009 - ... | SHAFT, TIMING BELT IDLER (KDJ150, 1KDFTV) |
| Toyota | Land Cruiser Prado (J90) | 3.0 TD (1KZT) | 1996 - 2002 | SHAFT, TIMING BELT IDLER (KZJ90, 1KZT) |
| Toyota | Land Cruiser Prado (J90) | 3.0 D-4D (1KDFTV) | 1999 - 2002 | SHAFT, TIMING BELT IDLER (KDJ90, 1KDFTV) |
