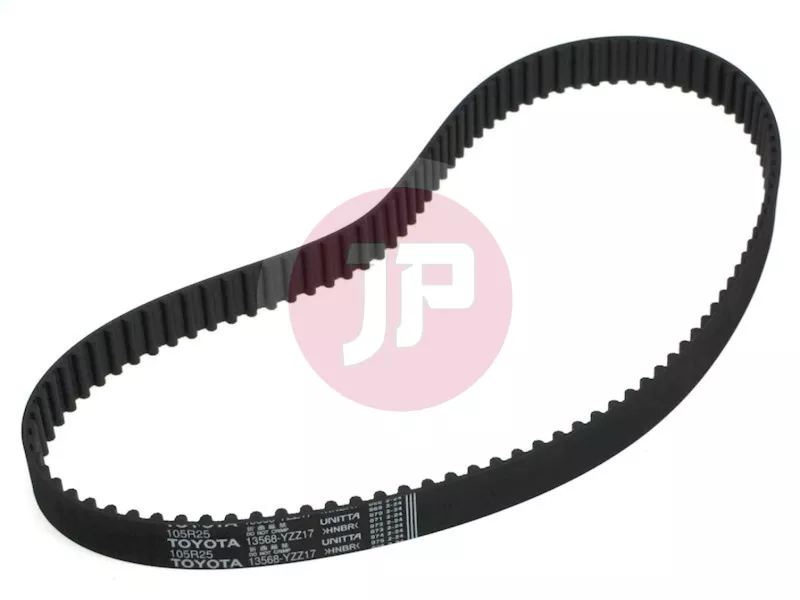

TOYOTA 13568-YZZ17 Timing Belt

The genuine TOYOTA timing belt with part number 13568-YZZ17 is a critical drive component engineered for the precise synchronization of internal combustion engine valve timing. It is responsible for transmitting drive between the crankshaft and the camshaft, ensuring the synchronized movement of the valves and pistons. Built with a robust elastomer construction reinforced with high-tensile cord fibers, it effectively withstands dynamic loads, temperature fluctuations, and engine bay vibrations.

Technical Specifications:

• Part Type: Timing Belt (toothed belt)
• Engine Application: Toyota 4.2 TD (1HD-FT, 1HD-FTE)
• OEM / Cross-reference Numbers: 1356819175, 1356819176
• Construction: Heat- and stretch-resistant synthetic rubber composite with wear-resistant fabric facing on the tooth profile

Wear, stretching, or tooth damage on the timing belt can lead to altered valve timing, resulting in power loss, rough idling, or starting difficulties. A snapped belt can cause mechanical interference between the valves and pistons, resulting in severe internal engine damage; adhering strictly to the manufacturer-specified replacement intervals is therefore essential.

Vehicle Compatibility:

• Toyota Coaster (B40/B50) 4.2 TD [1995 - 2001] (BELT, TIMING (1HDFT))
• Toyota Land Cruiser 100 (J100) 4.2 TD [1998 - 2001] (BELT, TIMING (HDJ101, 1HDFTE))
• Toyota Land Cruiser 80 (J80) 4.2 TD [1995 - 1998] (BELT, TIMING (HDJ80, 1HDFT))
