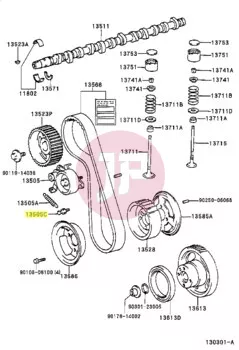

TOYOTA 13575-17010 Timing Belt Tensioner Spring Pin
Genuine part. Fitment information is for reference only. To ensure 100% compatibility, please send us a message with your VIN number before ordering.
Product Description
The genuine Toyota part number 13575-17010 tensioner spring pin (PIN, SPRING TEN / PIN FOR IDLER SPRING TENSION) is a critical retaining component of the timing belt tensioning system. Its purpose is to provide stable, displacement-free support on the engine block or inner surface of the timing case for the tension spring operating the timing belt tensioner pulley.
Function and Technical Significance: The pin directly bears the continuous tensile load of the tensioner spring, which presses the tensioner pulley against the timing belt. Maintaining correct belt tension is essential for keeping precise timing synchronization, preventing belt tooth slippage, and ensuring smooth belt drive operation. During timing belt replacement, inspecting the surface condition and structural integrity of the retaining pin is paramount, as mechanical damage, bending, or wear resulting from material fatigue or improper service can cause the spring to detach, leading to belt slack and severe engine damage.
Technical Specifications:
- Part Number: 13575-17010
- Manufacturer: Toyota (Genuine OEM part)
- Part Type: Timing belt tensioner spring retaining pin
- Installation Position: Engine block / inner side of timing cover (tensioner spring mounting point)
- Material: High-strength, corrosion- and wear-resistant hardened steel
Vehicle Compatibility:
- Toyota Coaster (B20/B30) [1990 - 1993] (PIN(FOR IDLER SPRING TENSION))
- Toyota Coaster (B40/B50) 4.2 D [1993 - 1997] (PIN(FOR IDLER SPRING TENSION) (1HZ))
- Toyota Coaster (B40/B50) 4.2 TD [1993 - 1997] (PIN(FOR IDLER SPRING TENSION) (1HDT))
- Toyota Land Cruiser 70 (J70) 4.2 D [1990 - 1999] (PIN(FOR IDLER SPRING TENSION) (HZJ70, 1HZ))
- Toyota Land Cruiser 70 (J70) 3.5 D [1990 - 1995] (PIN(FOR IDLER SPRING TENSION) (PZJ70, 1PZ))
- Toyota Land Cruiser 80 (J80) 4.2 TD [1990 - 1998] (PIN(FOR IDLER SPRING TENSION) (HDJ80, 1HDT))
- Toyota Land Cruiser 80 (J80) 4.2 TD [1990 - 1992] (PIN(FOR IDLER SPRING TENSION) (HDJ80, 1HDFT))
Technical Specifications
| Brand | TOYOTA |
|---|---|
| Weight | 0.007 kg |
Compatible Vehicles
| Make | Model | Engine | Year | Notes |
|---|---|---|---|---|
| Toyota | Coaster (B20/B30) | All Engines | 1990 - 1993 | PIN(FOR IDLER SPRING TENSION) |
| Toyota | Coaster (B40/B50) | 4.2 D (1HZ) | 1993 - 1997 | PIN(FOR IDLER SPRING TENSION) (1HZ) |
| Toyota | Coaster (B40/B50) | 4.2 TD (1HDT) | 1993 - 1997 | PIN(FOR IDLER SPRING TENSION) (1HDT) |
| Toyota | Land Cruiser 70 (J70) | 4.2 D (1HZ) | 1990 - 1999 | PIN(FOR IDLER SPRING TENSION) (HZJ70, 1HZ) |
| Toyota | Land Cruiser 70 (J70) | 3.5 D (1PZ) | 1990 - 1995 | PIN(FOR IDLER SPRING TENSION) (PZJ70, 1PZ) |
| Toyota | Land Cruiser 80 (J80) | 4.2 TD (1HDT) | 1990 - 1998 | PIN(FOR IDLER SPRING TENSION) (HDJ80, 1HDT) |
| Toyota | Land Cruiser 80 (J80) | 4.2 TD (1HDFT) | 1990 - 1992 | PIN(FOR IDLER SPRING TENSION) (HDJ80, 1HDFT) |
Inquire About This Part
Not sure if this fits? Send us your VIN number and we will double check for you.
