TOYOTA 17801-61030 Air Filter Element
Genuine part. Fitment information is for reference only. To ensure 100% compatibility, please send us a message with your VIN number before ordering.
Categories
Product Description

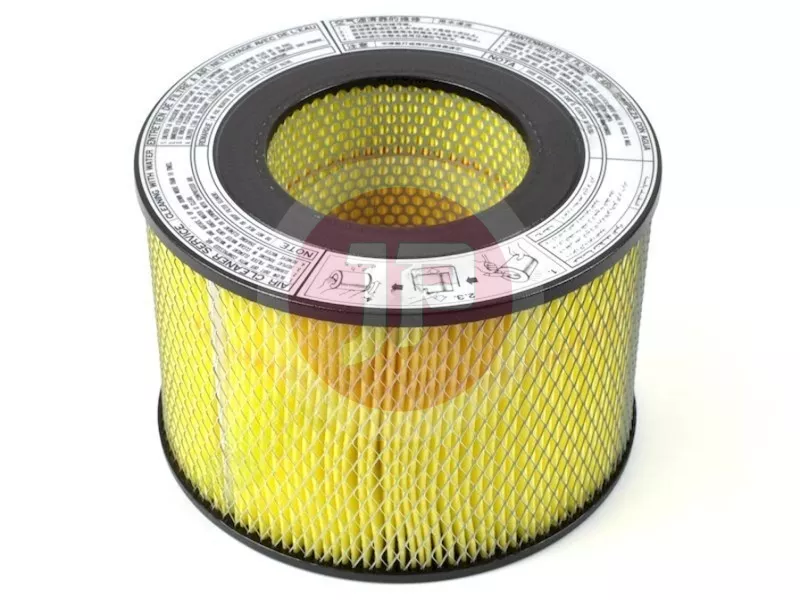

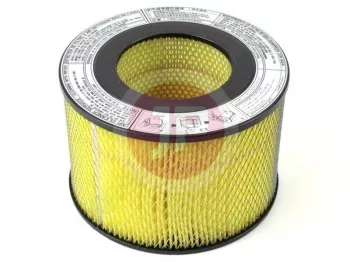

The TOYOTA 17801-61030 air filter element (ELEMENT, AIR) is a vital intake system component responsible for thoroughly cleaning the air flowing into the internal combustion engine's cylinders. It prevents abrasive particles—such as road dust, fine sand, and airborne particulates—from entering the combustion chamber, protecting cylinders, piston rings, and valves against premature wear while ensuring optimal airflow necessary for peak engine performance.
Technical Specifications
- Part Type: Dry air filter element (cylindrical design)
- Filter Media: High-strength, precision-pleated microporous cellulose filter paper
- Gasket / Seal: Heat- and oil-resistant flexible sealing lip preventing untreated raw bypass air leakage
- Structural Reinforcement: Reinforced inner metal mesh core to withstand intake vacuum deformation
- Installation Location: Engine compartment air cleaner housing
Natural saturation and clogging of the air filter lead to increased intake restriction. Typical symptoms of an exhausted filter include reduced engine power, sluggish throttle response, increased fuel consumption, and visible black exhaust smoke under load on turbodiesel engines. Timely, periodic replacement is essential to maintain engine service life.
Vehicle Compatibility
- Toyota Coaster (B20/B30) 4.2 D [1986 - 1993] (1HZ)
- Toyota Coaster (B40/B50) 2.7 [1993 - 2007] (3RZF)
- Toyota Coaster (B40/B50) 4.2 D [1993 - ...] (1HZ)
- Toyota Coaster (B60/B70) 4.2 D [2017 - 9999] (1HZ)
- Toyota Dyna / Toyoace (U60-U90/Y50-Y80) 3.7 D [1990 - 1993] (14B)
- Toyota Land Cruiser 60 (J60) 4.0 TD [1986 - 1987] (HJ61, 12HT)
- Toyota Land Cruiser 60 (J60) 4.0 [1986 - 1992] (FJ62, 3FE)
- Toyota Land Cruiser 70 (J70) 3.4 TD [1986 - 1990] (BJ70, 13BT)
- Toyota Land Cruiser 70 (J70) 4.2 D [1990 - 1993] (HJ75, 1HZ)
- Toyota Land Cruiser 70 (J70) 4.5 [1990 - 1993] (FJ70, 1FZF)
- Toyota Land Cruiser 70 (J70) 3.5 D [1990 - 1995] (PZJ70, 1PZ)
- Toyota Land Cruiser 70 (J70) 3.0 TD [1993 - 1996] (KZJ70, 1KZT)
- Toyota Land Cruiser 80 (J80) 4.5 [1990 - 1992] (FJ80, 1FZF)
- Toyota Land Cruiser 80 (J80) 4.2 TD [1990 - 1992] (HDJ80, 1HDFT)
- Toyota Land Cruiser 80 (J80) 4.2 D [1992 - 1998] (HDJ80, 1HZ)
Technical Specifications
| Brand | TOYOTA |
|---|---|
| Weight | 0.660 kg |
Compatible Vehicles
| Make | Model | Engine | Year | Notes |
|---|---|---|---|---|
| Toyota | Coaster (B20/B30) | 4.2 D (1HZ) | 1986 - 1993 | ELEMENT SUB-ASSY, AIR CLEANER FILTER (1HZ) |
| Toyota | Coaster (B40/B50) | 2.7 (3RZF) | 1993 - 2007 | ELEMENT SUB-ASSY, AIR CLEANER FILTER (3RZF) |
| Toyota | Coaster (B40/B50) | 4.2 D (1HZ) | 1993 - ... | ELEMENT SUB-ASSY, AIR CLEANER FILTER (1HZ) |
| Toyota | Coaster (B60/B70) | 4.2 D (1HZ) | 2017 - 9999 | ELEMENT SUB-ASSY, AIR CLEANER FILTER (1HZ) |
| Toyota | Dyna / Toyoace (U60-U90/Y50-Y80) | 3.7 D (14B) | 1990 - 1993 | ELEMENT SUB-ASSY, AIR CLEANER FILTER (14B) |
| Toyota | Land Cruiser 60 (J60) | 4.0 TD (12HT) | 1986 - 1987 | ELEMENT SUB-ASSY, AIR CLEANER FILTER (HJ61, 12HT) |
| Toyota | Land Cruiser 60 (J60) | 4.0 (3FE) | 1986 - 1992 | ELEMENT SUB-ASSY, AIR CLEANER FILTER (FJ62, 3FE) |
| Toyota | Land Cruiser 70 (J70) | 3.4 TD (13BT) | 1986 - 1990 | ELEMENT SUB-ASSY, AIR CLEANER FILTER (BJ70, 13BT) |
| Toyota | Land Cruiser 70 (J70) | 4.2 D (1HZ) | 1990 - 1993 | ELEMENT SUB-ASSY, AIR CLEANER FILTER (HJ75, 1HZ) |
| Toyota | Land Cruiser 70 (J70) | 4.5 (1FZF) | 1990 - 1993 | ELEMENT SUB-ASSY, AIR CLEANER FILTER (FJ70, 1FZF) |
| Toyota | Land Cruiser 70 (J70) | 3.5 D (1PZ) | 1990 - 1995 | ELEMENT SUB-ASSY, AIR CLEANER FILTER (PZJ70, 1PZ) |
| Toyota | Land Cruiser 70 (J70) | 3.0 TD (1KZT) | 1993 - 1996 | ELEMENT SUB-ASSY, AIR CLEANER FILTER (KZJ70, 1KZT) |
| Toyota | Land Cruiser 80 (J80) | 4.5 (1FZF) | 1990 - 1992 | ELEMENT SUB-ASSY, AIR CLEANER FILTER (FJ80, 1FZF) |
| Toyota | Land Cruiser 80 (J80) | 4.2 TD (1HDFT) | 1990 - 1992 | ELEMENT SUB-ASSY, AIR CLEANER FILTER (HDJ80, 1HDFT) |
| Toyota | Land Cruiser 80 (J80) | 4.2 D (1HZ) | 1992 - 1998 | ELEMENT SUB-ASSY, AIR CLEANER FILTER (HDJ80, 1HZ) |
Inquire About This Part
Not sure if this fits? Send us your VIN number and we will double check for you.
