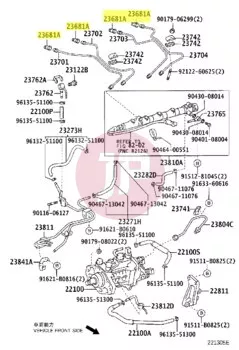

TOYOTA 23681-17010 Nozzle Holder Seal

The genuine OEM Toyota 23681-17010 nozzle holder seal (SEAL, NOZZLE HOLDER) is a critical sealing component within the fuel injection system. Its function is to provide a reliable, airtight seal at the junction between the fuel injector nozzle holder and the valve cover or cylinder head, preventing engine oil leaks and the ingress of contaminants.

Key Functions and Operating Principle

The nozzle holder seal is in direct contact with engine oil and is exposed to the high operating temperatures within the engine. Its primary functions include:

• Preventing Oil Leaks: Isolates the oil chamber under the valve cover from the external environment and the injector wells.
• Maintaining Pressure: Ensures that blow-by gases and oil vapors do not escape from the engine around the injectors.
• Protection: Shields the injection system from external dust contamination and moisture.

Common Symptoms of Wear and Failure

Over time, rubber and elastomer seals lose their elasticity, harden, or crack due to continuous thermal cycling and chemical exposure (engine oil, fuel). Typical signs of failure include:

• Visible oil seepage or oil vapor accumulation around the base of the injectors on the valve cover.
• Blow-by gas leakage, causing a distinctive burnt oil or fuel odor in the engine bay and passenger cabin.
• Accumulation of dust and stubborn grime around the seal area caused by leaking oil.

Technical Specifications

• Manufacturer: TOYOTA (Genuine OEM part)
• Part Number: 23681-17010
• Part Name: Seal, Nozzle Holder
• Material Composition: Premium-grade elastomer (NBR/FKM) with high thermal and chemical resistance, engineered to withstand engine oil and fuel additives.
• Installation Position: Valve cover / nozzle holder mounting points.

Using genuine Toyota parts ensures precise fitment, compliance with factory tolerances, and maximum service life compared to aftermarket alternatives.
