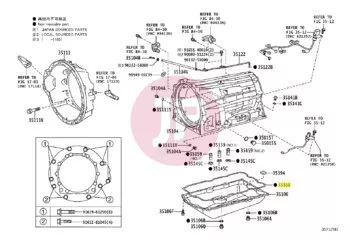

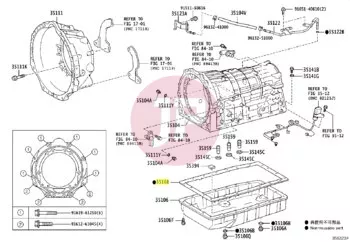

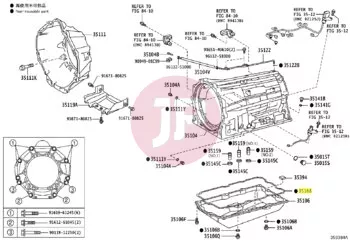

TOYOTA 35168-34020 Automatic Transmission Oil Pan Gasket

The genuine TOYOTA (part number: 35168-34020) automatic transmission oil pan gasket is a premium-quality, precision sealing component essential for the proper operation of the automatic transmission's hydraulic system and for the leak-free retention of transmission fluid.

The primary function of this part is to provide a perfect and durable seal between the mating surfaces of the transmission housing and the oil pan. Automatic transmissions are extremely sensitive to correct fluid levels and internal pressure. The gasket prevents transmission fluid leaks, thereby maintaining hydraulic pressure stability and protecting internal components from dry running and overheating.

Technical Characteristics and Specifications:

• Manufacturer: TOYOTA OEM
• OEM Part Number: 35168-34020
• Replacement / Alternative Part Numbers: 35168-34010 (3516834010)
• Part Type: Automatic Transmission Oil Pan Gasket
• Material Composition: High heat- and oil-resistant elastomer or specialized composite material designed to withstand the chemical effects of ATF and elevated operating temperatures.
• Mounting Position: Lower part of the automatic transmission, between the oil pan and the transmission case.

Signs of Wear and Failure:

Over time, automatic transmission gaskets lose elasticity, turn brittle, and crack due to high operating temperatures and chemical exposure. Common signs of failure include:

• Fluid Leaks: Reddish or dark brown transmission fluid puddles or spots under the vehicle around the transmission area.
• Operating Malfunctions: Delayed gear engagement, slipping clutches, or harsh shifting caused by low fluid levels.
• Overheating: Increased thermal buildup due to insufficient fluid volume, which can damage internal transmission components.

Replacing the gasket is recommended during every transmission fluid and filter service, or immediately upon detecting a leak, to prevent costly transmission failures.
