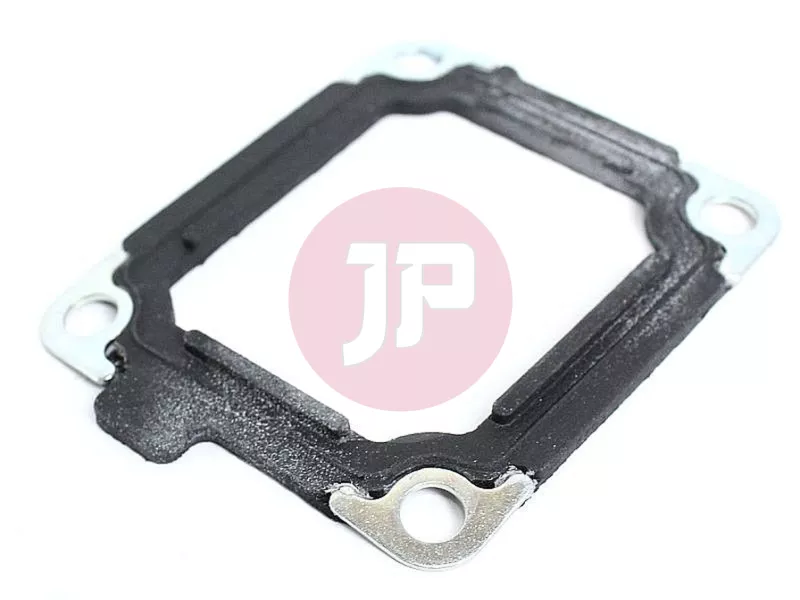

TOYOTA 36345-60010 Transfer Case Control Gasket
Genuine part. Fitment information is for reference only. To ensure 100% compatibility, please send us a message with your VIN number before ordering.
Categories
Product Description
The genuine Toyota 36345-60010 transfer case control gasket is a premium-quality, precision-fit sealing component designed to provide a reliable, leak-free seal between the transfer case shift control mechanism and the housing mating surface.
Function and Operation
The primary function of the transfer case control gasket is to prevent gear oil leakage from the transfer case housing at the joints of the shift lever or control mechanism. In addition, it hermetically seals the system against external environmental influences, preventing water, dust, mud, and other abrasive contaminants from entering the internal transfer case assembly, thereby protecting the gears and bearings from premature wear.
Symptoms and Consequences of Failure
Over time, gaskets can age, harden, or crack due to continuous thermal stress and vibration. Typical symptoms of failure include:
- Oil leakage or the appearance of oil mist on the upper part of the transfer case, around the shift mechanism.
- Gradual loss of transfer case oil level, which can lead to insufficient lubrication.
- Stiff or rough shifting between transfer case ranges caused by the ingress of contaminants.
Technical Specifications
- Manufacturer: TOYOTA (Genuine OEM part)
- Part Number: 36345-60010
- Part Type: Transfer Case Control Gasket
- Material: Specialized gasket material resistant to high temperatures and transmission oils
- Installation Location: Transfer case shift control housing joint
- Features: Outstanding dimensional stability, high compression resistance, and long service life
Technical Specifications
| Brand | TOYOTA |
|---|---|
| Weight | 0.030 kg |
Compatible Vehicles
| Make | Model | Engine | Year | Notes |
|---|---|---|---|---|
| Toyota | Land Cruiser 100 (J100) | 4.5 (1FZFE) | 1998 - 2002 | GASKET,TRANSFER CONTROL SHIFT LEVER RETAINER (FZJ105, 1FZFE) |
| Toyota | Land Cruiser 100 (J100) | 4.2 TD (1HDFTE) | 1998 - ... | GASKET,TRANSFER CONTROL SHIFT LEVER RETAINER (HDJ101, 1HDFTE) |
| Toyota | Land Cruiser 100 (J100) | 4.7 (2UZFE) | 1998 - ... | GASKET,TRANSFER CONTROL SHIFT LEVER RETAINER (UZJ100, 2UZFE) |
| Toyota | Land Cruiser 80 (J80) | 4.5 (1FZF) | 1993 - ... | GASKET,TRANSFER CONTROL SHIFT LEVER RETAINER (FZJ80, 1FZF) |
| Toyota | Land Cruiser 80 (J80) | 4.2 D (1HZ) | 1993 - 2001 | GASKET,TRANSFER CONTROL SHIFT LEVER RETAINER (HZJ80, 1HZ) |
| Toyota | Land Cruiser 80 (J80) | 4.2 TD (1HDFT) | 1993 - 9999 | GASKET,TRANSFER CONTROL SHIFT LEVER RETAINER (HDJ80, 1HDFT) |
| Toyota | Lexus LX (J100) | 4.7 (2UZFE) | 1998 - ... | GASKET,TRANSFER CONTROL SHIFT LEVER RETAINER (UZJ100, 2UZFE) |
Inquire About This Part
Not sure if this fits? Send us your VIN number and we will double check for you.
