TOYOTA 41039-34060 Differential Gear Kit

The genuine TOYOTA (part number: 41039-34060) differential gear kit (GEAR KIT, DIFFERENTIAL) is a critical drivetrain component forming the internal mechanism of the vehicle's differential. This precision-engineered kit ensures an even and efficient distribution of torque between the driven wheels while allowing them to rotate at different speeds during cornering, preventing excessive tire wear and drivetrain binding.

Operating Principle and Importance

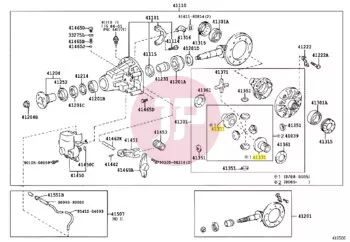

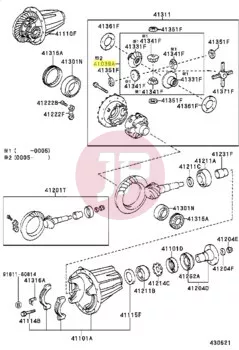

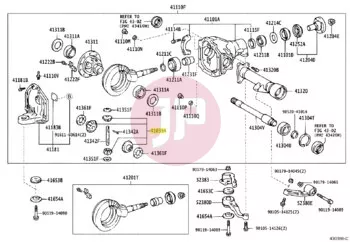

The differential gear kit typically consists of planetary gears (side gears and pinion gears), shafts, and thrust washers. When the vehicle takes a turn, the wheel on the outer radius must cover a greater distance than the wheel on the inner radius. The smooth meshing and rolling action of the gears in this kit facilitates this rotational speed variance while transmitting continuous, uninterrupted driving force from the engine to both wheels.

Technical Characteristics and Material Quality

As is characteristic of genuine Toyota parts, this gear kit is manufactured according to rigorous OEM standards:

• Material Composition: High-strength, hardened steel alloy engineered for maximum wear resistance and high torque load capacity.
• Surface Treatment: Precision grinding and heat treatment (case hardening) to minimize friction and extend component service life.
• Design: Optimized tooth profile geometry to ensure quiet operation and minimal backlash.

Typical Symptoms of Wear or Failure

The internal gears of the differential operate under continuous mechanical load and shear stress. Lubricant breakdown, contamination by metallic particles, or natural wear over time can cause the following symptoms:

• Whining, humming, or whistling noise: Mechanical sounds that become prominent during acceleration, engine braking, or cornering, pointing to gear wear or improper lash/pre-load.
• Clicking or clunking sounds: Metallic knocks heard when changing direction (shifting between forward and reverse) or when setting off from a standstill.
• Increased vibration: Drivetrain vibrations that intensify with vehicle speed.
• Metallic debris in the differential oil: Fine metal dust or larger flakes detected during fluid service, indicating surface damage (pitting) on the gear teeth.

Replacing a differential gear kit requires specialized mechanical expertise and precise adjustment, including proper backlash shimming and tooth contact pattern verification. Using genuine TOYOTA components guarantees exact fitment and restores original factory driving performance.
