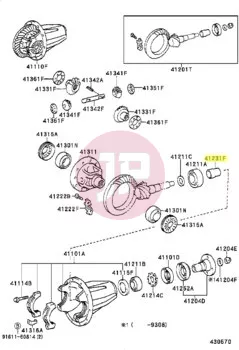

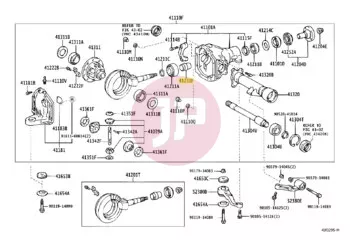

TOYOTA 41231-24010 Differential Pinion Bearing Crush Sleeve

The genuine TOYOTA 41231-24010 crush sleeve (pinion bearing spacer) is a critical precision component in the vehicle's differential. Its primary function is to establish and maintain the exact preload on the drive pinion shaft bearings during assembly.

Operating Principle and Significance

The crush sleeve is seated on the pinion shaft between the inner and outer pinion bearings. When the pinion nut is torqued, the sleeve undergoes controlled deformation (crushes), thereby applying the specified axial preload to the bearings. Correct preload is essential for precise gear meshing, minimal backlash, and smooth, quiet, long-term differential operation.

Technical Specifications

• Manufacturer: TOYOTA (Genuine OEM part)
• Part Number: 41231-24010
• Part Type: Pinion Bearing Spacer / Crush Sleeve
• Material: High-strength steel alloy engineered for controlled deformation
• Installation Position: Differential pinion shaft, between the bearings

When Is Replacement Required?

The crush sleeve is a single-use component. Whenever the differential is disassembled, the pinion nut is loosened, or the pinion shaft seal is replaced, the crush sleeve must be replaced with a new genuine OEM unit. Once compressed, the sleeve cannot re-establish or maintain the required bearing preload.

Symptoms of Improper Preload or Failure

• Whining, humming, or growling noise originating from the differential (especially under acceleration or deceleration)
• Excessive play or looseness in the pinion shaft
• Differential pinion seal leakage caused by shaft vibration
• Excessive differential operating temperature resulting from overtightened bearing preload
