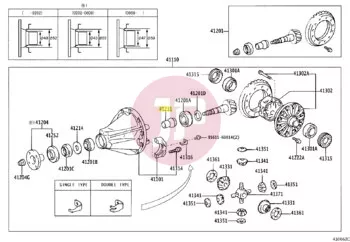

TOYOTA 41231-60040 Drive Pinion Crush Sleeve

The genuine part number TOYOTA 41231-60040 is a premium quality drive pinion crush sleeve (drive pinion spacer / collapsible sleeve), which is a critical structural component of the vehicle's differential. This precision component is located on the drive pinion shaft between the bearings and plays a fundamental role in the proper operation and service life of the differential.

Function and Operating Principle

The primary function of the crush sleeve is to set and maintain the precise preload of the drive pinion bearings. When tightening the pinion nut, the sleeve undergoes controlled plastic deformation (collapses/compresses). This deformation provides the required resistance and tension to prevent the bearings from being fitted too tightly or too loosely. Precise preload is essential for proper gear mesh (backlash) and quiet, noise-free operation.

Technical Features and Specifications

• Type: Single-use collapsible sleeve (crush sleeve / spacer)
• Material: High-strength, specially heat-treated structural steel, guaranteeing controlled and uniform deformation during assembly
• Installation Position: Differential drive pinion shaft, between the inner and outer pinion bearings
• Important Warning: This part is strictly single-use! Whenever the differential is disassembled, or when bearings or oil seals are replaced, the crush sleeve must always be replaced with a new, genuine unit, as a previously deformed sleeve cannot reliably establish and maintain the required bearing preload.

Signs of Failure or Wear

Although the crush sleeve itself is not a standard wear item, improper installation (over-torquing or under-torquing) or differential overloading can lead to a loss of preload tension. Common symptoms include:

• Increased Noise: Whining, whistling, or howling noises originating from the differential, especially under acceleration or engine braking (caused by improper gear mesh).
• Axial Play: Excessive free play in the drive pinion shaft, leading to rapid bearing and gear wear.
• Oil Leakage: Runout or play in the pinion shaft prevents the pinion seal from sealing properly, resulting in differential gear oil leaks.
