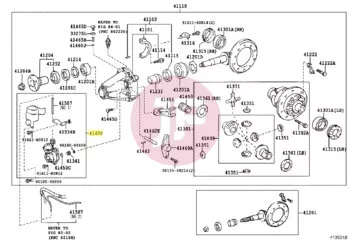

TOYOTA 41450-35031 Differential Lock Actuator Assembly

The TOYOTA 41450-35031 (OEM supersession number: 41450-35030) is a genuine OEM differential lock actuator assembly (Actuator Assy), serving as a crucial electromechanical component of the vehicle's four-wheel drive (4WD) system. This unit is responsible for the precise mechanical locking and unlocking of the differential, ensuring maximum traction and torque transfer under challenging off-road conditions.

Technical Features and Construction

The differential lock actuator unit is engineered to withstand the most severe environmental conditions, including mud, water, dust, and extreme temperature fluctuations. Its robust metal housing and specialized seals protect the internal electric motor and gear reduction drive against corrosion and contamination.

• Manufacturer: TOYOTA (Original Equipment Manufacturer)
• Part Number (SKU): 41450-35031
• Superseded / OEM Numbers: 41450-35030, 4145035030
• Voltage: 12V DC (nominal voltage)
• Housing Material: Die-cast aluminum and high-strength composite plastic
• Connector Type: Factory-specification, sealed electrical connector to prevent water intrusion
• Operating Principle: Electromechanical gear drive with limit switch

Function and Operation

When the driver activates the differential lock from the dashboard switch, the control unit transmits a signal to the actuator motor. Through its internal gearing, the motor moves the shift fork located inside the differential, mechanically locking the axle shafts together. This prevents wheel spin relative to each other, distributing torque equally between the left and right wheels, which is essential for maintaining traction and preventing wheel slippage on slippery, muddy, or rocky terrain.

Typical Symptoms and Causes of Failure

Mounted directly on the differential housing on the vehicle's undercarriage, this component is subject to physical impacts and moisture exposure. Common failure symptoms and causes include:

• Flashing differential lock indicator light: The system cannot confirm successful engagement or disengagement (often due to an internal limit switch or motor failure).
• Differential lock fails to engage or disengage: The vehicle binds during turning, or fails to deliver increased traction off-road.
• Water intrusion and corrosion: Water ingress caused by aged seals can lead to short circuits or binding of the internal mechanical components.
• Mechanical damage: Cracked housing caused by external physical impacts (such as flying stones or branches).

To maintain safe and reliable off-road capability, a malfunctioning actuator motor should be replaced promptly. Genuine TOYOTA parts guarantee a precise fit, long service life, and seamless integration with the vehicle's factory electronic systems.
