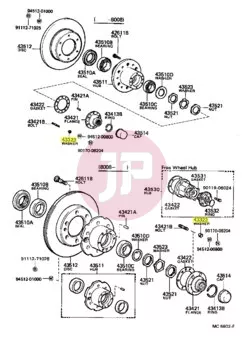

TOYOTA 42323-60010 Cone Washer

This genuine Toyota (OEM: 42323-60010) cone washer is a precision-engineered, heavy-duty fastener specifically designed for automotive drivetrain and wheel hub systems. Cone washers play a critical role in securely fastening axle shaft flanges, free-wheel locking hubs, and wheel hub assemblies where conventional flat washers cannot withstand the prevailing shear and torsional forces.

Operating Principle and Function

Thanks to its split, tapered geometry, the cone washer compresses radially as the mounting nut is torqued down. This completely fills the clearance gap between the flange mounting hole and the stud, eliminating play. This mechanism prevents wheel stud shearing and ensures even torque distribution between the wheel hub and the axle shaft.

Technical Characteristics and Specifications

• Manufacturer: TOYOTA (Genuine OEM Part)
• Part Number: 42323-60010
• Part Type: Cone Washer
• Material: Premium-grade hardened carbon steel for maximum tensile strength and elasticity
• Design: Precision-machined tapered surface with a longitudinal split for optimal expansion clamping
• Resistance: Excellent corrosion and wear resistance for lasting durability under severe operating conditions

Signs of Wear and the Importance of Replacement

Cone washers are subjected to substantial mechanical stress during wheel hub maintenance (such as axle shaft or wheel bearing replacement). The following symptoms indicate component wear or damage:

• Plastic Deformation: When the washer loses elasticity due to repeated retightening and can no longer seat securely against the stud.
• Cracks or Fractures: Excessive tightening torque or metal fatigue can cause cracking, necessitating immediate washer replacement.
• Corrosion and Seizing: Rust caused by water and mud ingress weakens the material structure and makes disassembly difficult.
• Loosening Fasteners: Wheel hub studs that repeatedly loosen are frequently caused by stretched or damaged cone washers.

To ensure safe and vibration-free operation, it is recommended to inspect the condition of the cone washers whenever the wheel hub assemblies are dismantled, and replace them with genuine new OEM components if necessary.
