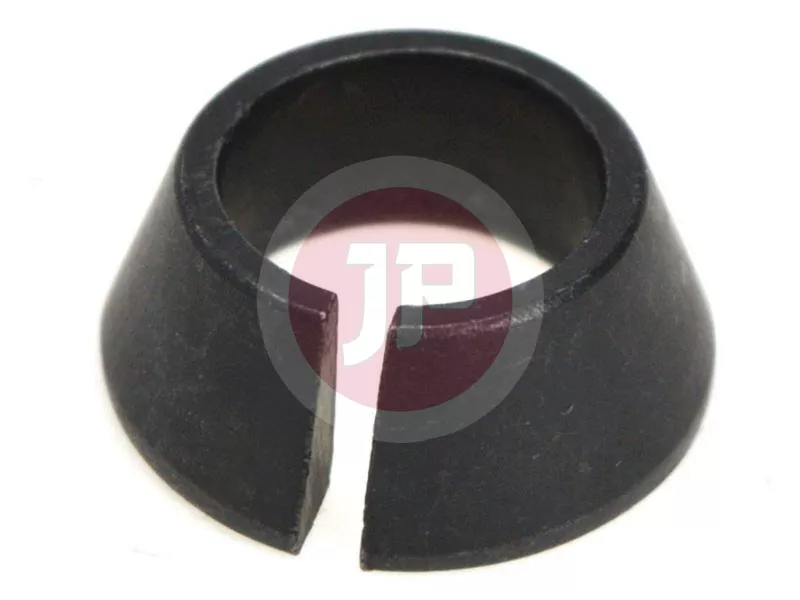

TOYOTA 42323-60020 Cone Washer

The genuine TOYOTA 42323-60020 cone washer (tapered washer) is a precision-engineered, heavy-duty fastening element primarily used in the suspension, axle shaft, and wheel hub systems of Toyota off-road and commercial vehicles (for example, for securing free-wheeling hubs and steering arms). This specialized washer plays a vital role in securing bolted joints subjected to vibrations and high shear forces.

Operating Principle and Function

Thanks to its unique geometry, the cone washer wedges into the tapered bore of the mating component when the retaining nut is tightened. This mechanism generates radial tension around the stud, which:

• Prevents the bolted connection from loosening, even under extreme vibration and dynamic stress.
• Ensures perfect centering (self-centering) between the fastened components.
• Evenly distributes the clamping force, reducing shear stress exerted on the studs.

Technical Specifications

• Manufacturer: TOYOTA (Original Equipment Manufacturer - OEM)
• Part Number: 42323-60020
• Part Type: Cone Washer (Tapered Lock Washer)
• Material: Hardened, high-tensile carbon steel alloy for maximum resistance to deformation.
• Surface Finish: Corrosion-resistant, phosphated finish for protection against environmental influences.
• Application Area: Typically used for securing axle shaft locks (free-wheeling hubs), steering arms, and wheel hubs.

Signs of Wear and Replacement Interval

Although cone washers are exceptionally durable, their condition should always be inspected during suspension maintenance or disassembly. Replacement is mandatory if any of the following signs are detected:

• Deformation or Cracks: Due to overtightening or metal fatigue, the washer may lose its elasticity and conical shape.
• Corrosion and Galling: Rust weakens the structural integrity of the material and hinders a precise fit.
• Looseness or Play: Any slight movement in the secured assembly (e.g., wheel hub) can indicate a decrease in the washers' clamping tension.

Note: To ensure secure and vibration-resistant fastening, it is recommended in accordance with factory guidelines to replace loosened or removed cone washers with new, genuine TOYOTA parts.
