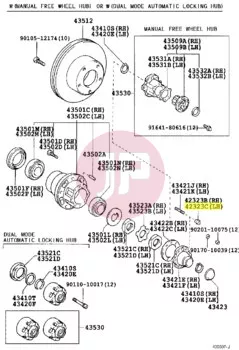

TOYOTA 42323-60030 Cone Washer

The genuine Toyota 42323-60030 cone washer (tapered locking ring) is a critical, heavy-duty fastening component primarily used in wheel hub assemblies, drive axle flanges, or steering components of Toyota off-road and commercial vehicles. This specially designed washer ensures maximum shear strength for mounting bolts and studs, providing zero-play, rigid fastening.

Technical Features and Construction

• Material Quality: High-strength hardened steel alloy engineered to withstand extreme mechanical stress and vibration.
• Design: Precision tapered geometry with a longitudinal split (split-cone design) that allows the washer to expand and contract for optimal wedging and clamping force.
• Surface Treatment: Anti-corrosion phosphated or zinc-plated protective coating for resistance against environmental elements.
• Application Area: Stud mountings for wheel hubs, free-wheeling hubs (locking hubs), axle drive flanges, and steering arms.

Operating Principle and Significance

The cone washer plays a vital role in absorbing shear loads. When the retaining nut is torqued onto the stud, the cone washer is forced into the tapered recess of the mating component (e.g., axle flange). Due to its split design, the washer compresses tightly against the stud while completely filling the clearance between the hole and the fastener. This eliminates radial play, prevents stud shearing, and distributes clamping forces evenly even under extreme dynamic loads.

Signs of Wear and Maintenance

Although cone washers are highly durable, they require close inspection during maintenance or disassembly. The following signs indicate the need for replacement:

• Deformation or Cracking: Due to overtightening or metal fatigue, the washer may lose its elasticity or develop cracks.
• Corrosion and Galling: Rust or galling caused by improper lubrication prevents proper seating and makes future removal difficult.
• Wear: If the tapered surface wears down, the washer can no longer provide zero-play locking, which may lead to stud loosening or failure.

To ensure secure, vibration-free fastening, it is recommended to inspect the condition of the cone washers whenever the wheel hub or axle assembly is disassembled and replace them with genuine OEM parts if necessary.
