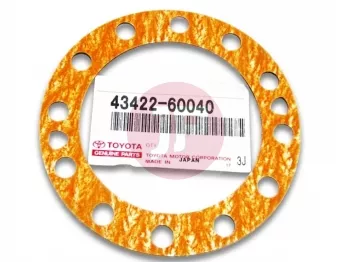

TOYOTA 43422-60040 Front Axle Gasket

The genuine TOYOTA 43422-60040 (Front Axle Gasket / GASKET, FR AXLE) is a premium-quality original OEM component that plays a vital role in reliably sealing front axle connections and the wheel hub assembly. This gasket is specifically designed to prevent the leakage of lubricants (gear oil, axle grease) and protect internal moving components from external contaminants.

Technical Specifications and Features

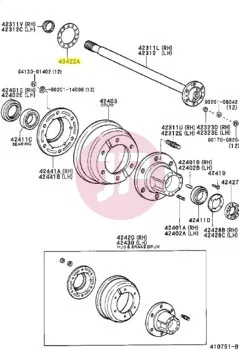

• Fitting Position: Front axle, outer side (between the axle shaft flange and the wheel hub bearing housing/end cap).
• Material Composition: High-resistance specialized sealing material (fiber-based composite or treated paper) that offers exceptional resistance to high temperatures, gear oil, and lubricating grease.
• Precise Fit: Manufactured strictly according to genuine OEM specifications, ensuring perfect dimensional accuracy and a tight, gap-free seal.
• Protection: Provides an effective barrier against water, dust, mud, and other environmental debris, preventing premature wear of the wheel hub bearings and drive axle connections.

Importance of the Gasket and Signs of Failure

The front axle gasket is essential for maintaining proper drivetrain lubrication. In the event of gasket aging, cracking, or mechanical damage, lubricant may leak out of the system, leading to dry-running bearings and premature mechanical breakdown.

Typical signs of failure include:

• Oil or grease spots appearing on the outer section of the wheel hub, near the axle shaft flange.
• Increased accumulation of dust and mud around the sealing surfaces (leaking lubricant attracts and traps debris).
• Abnormal noises (grinding, clicking) from the wheel hub caused by lubricant loss or contaminant ingress.

For safe and trouble-free operation, replacement of this gasket is always recommended whenever axle assemblies are disassembled (e.g., during axle shaft or wheel bearing service).
