TOYOTA 43515-0K020 ABS Sensor Ring

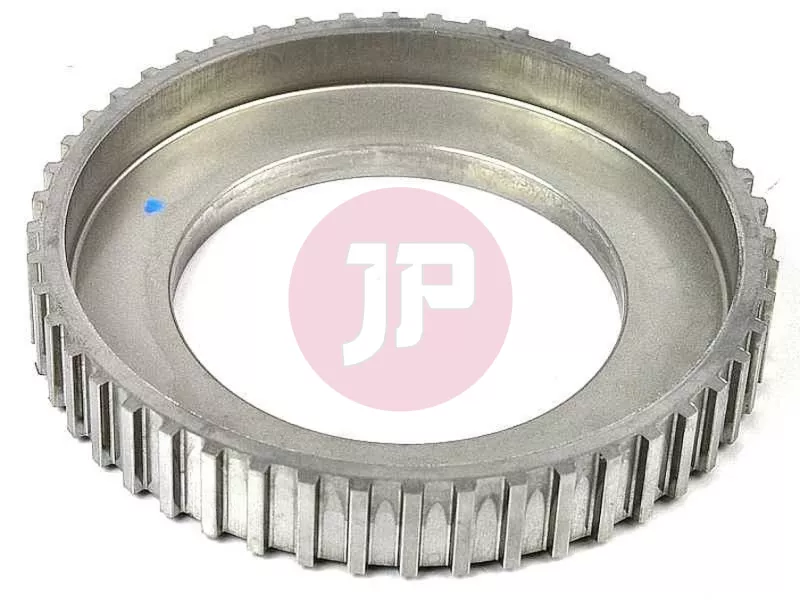

The genuine TOYOTA 43515-0K020 ABS sensor ring (Rotor, Skid Control) is an essential component of the vehicle's active safety system. This precision-engineered part is directly responsible for transmitting wheel speed data to the electronic brake control module (ABS/ESP).

Operating Principle and Importance

The ABS sensor ring rotates synchronously with the wheel hub or axle shaft. As the toothed outer profile of the ring passes by the ABS wheel speed sensor, it causes fluctuations in the sensor's magnetic field. This variation generates an alternating current (AC) signal whose frequency is directly proportional to the rotational speed of the wheel. The ABS control unit relies on this data to modulate brake pressure during emergency braking, preventing wheel lock-up and maintaining directional steerability even on slippery surfaces.

Technical Specifications

• Manufacturer: TOYOTA (Genuine OEM part)
• Part Type: ABS Sensor Ring / Rotor, Skid Control
• Material Composition: Specially treated, high magnetic permeability, corrosion-resistant steel alloy engineered to withstand salt water, mud, and extreme temperature fluctuations.
• Design: Precision tooth pitch configuration for accurate signal generation.

Common Symptoms and Causes of Failure

ABS tone rings are continuously exposed to harsh environmental factors (moisture, road de-icing salt, mechanical road debris). The most common failure modes and symptoms include:

• Cracking due to corrosion: Rust buildup beneath the ring can expand and crack it, altering the spacing between the teeth and transmitting an erratic signal to the sensor.
• Damaged teeth: Chipped, broken, or deformed teeth caused by road gravel impact or improper installation.
• Instrument cluster warnings: Continuous illumination of the ABS or ESP warning indicator.
• Abnormal brake intervention: Inappropriate or premature activation of the ABS system at low speeds on dry pavement.

To maintain vehicle safety and proper braking performance, a damaged or cracked ABS ring should be replaced immediately with a genuine OEM component.
