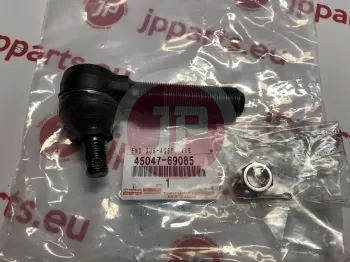

TOYOTA 45047-69085 Tie Rod End
Genuine part. Fitment information is for reference only. To ensure 100% compatibility, please send us a message with your VIN number before ordering.
Categories
OEM / Alternate Numbers
Product Description
General Description
The Genuine Toyota Tie Rod End (part number: 45047-69085) is a critical component of the vehicle's steering and suspension system. This part connects the steering gear to the steering knuckle at each front wheel, converting the rotational motion of the steering wheel into the linear motion needed to turn the wheels. This direct connection is essential for precise steering, proper wheel alignment, and the overall stability of the vehicle. Manufactured to Toyota's strict factory specifications, this part ensures optimal performance, durability, and a perfect fit for the specified models.
Signs of Wear and Failure
A worn or failing tie rod end can compromise the vehicle's safety and handling. Common symptoms include:
- A loose or vague feeling in the steering wheel.
- Knocking, clunking, or popping sounds, especially when turning at low speeds.
- Uneven or excessive tire wear, particularly on the inner or outer edges.
- Vibration or shaking felt through the steering wheel.
- Misaligned front end, causing the vehicle to pull to one side.
Technical Specifications
- Name: Tie Rod End (END SUB-ASSY, TIE ROD)
- Brand: Toyota (Genuine OEM)
- Part Number (SKU): 45047-69085
- Superseded Part Number: 45047-69066
- Fitment Position: Front Axle
- Contents: The package includes the castle nut and cotter pin required for installation.
Vehicle Compatibility
This part is guaranteed to fit the following vehicle models:
- Toyota Land Cruiser 105 (HZJ105)
- Toyota Land Cruiser 80 (HDJ80)
- Toyota Land Cruiser 80 (HZJ80)
It is highly recommended to verify compatibility with your vehicle's VIN before purchase to ensure an exact fit.
Technical Specifications
| Brand | TOYOTA |
|---|---|
| Weight | 0.500 kg |
Compatible Vehicles
| Make | Model | Engine | Year | Notes |
|---|---|---|---|---|
| Toyota | Land Cruiser 100 (J100) | 4.5 (1FZFE) | 1998 - ... | END SUB-ASSY, TIE ROD, RH (FZJ105, 1FZFE) |
| Toyota | Land Cruiser 60 (J60) | 4.0 TD (12HT) | 1989 - 1990 | END SUB-ASSY, TIE ROD, RH (HJ60, 12HT) |
| Toyota | Land Cruiser 60 (J60) | 4.0 (3FE) | 1989 - 1990 | END SUB-ASSY, TIE ROD, RH (BJ60, 3FE) |
| Toyota | Land Cruiser 70 (J70) | 3.4 TD (13BT) | 1989 - 1990 | END SUB-ASSY, TIE ROD, RH (BJ70, 13BT) |
| Toyota | Land Cruiser 70 (J70) | 2.4 TD (2LT) | 1989 - 1990 | END SUB-ASSY, TIE ROD, RH (LJ70, 2LT) |
| Toyota | Land Cruiser 70 (J70) | 4.2 D (1HZ) | 1990 - 1993 | END SUB-ASSY, TIE ROD, RH (FJ75, 1HZ) |
| Toyota | Land Cruiser 70 (J70) | 4.5 (1FZF) | 1990 - 1993 | END SUB-ASSY, TIE ROD, RH (FJ70, 1FZF) |
| Toyota | Land Cruiser 70 (J70) | 3.5 D (1PZ) | 1993 - 1994 | END SUB-ASSY, TIE ROD, RH (PZJ70, 1PZ) |
| Toyota | Land Cruiser 70 (J70) | 4.0 (1GRFE) | 2007 - 2016 | END SUB-ASSY, TIE ROD, RH (GRJ71, 1GRFE) |
| Toyota | Land Cruiser 80 (J80) | 4.0 (3FE) | 1990 - 1998 | END SUB-ASSY, TIE ROD, RH (FJ80, 3FE) |
| Toyota | Land Cruiser 80 (J80) | 4.5 (1FZF) | 1992 - ... | END SUB-ASSY, TIE ROD, RH (FZJ80, 1FZF) |
| Toyota | Land Cruiser 80 (J80) | 4.2 D (1HZ) | 1992 - 9999 | END SUB-ASSY, TIE ROD, RH (HZJ80, 1HZ) |
| Toyota | Land Cruiser 80 (J80) | 4.2 TD (1HDFT) | 1992 - ... | END SUB-ASSY, TIE ROD, RH (HDJ80, 1HDFT) |
| Toyota | Lexus LX (J80) | 4.5 (1FZFE) | 1995 - 1998 | END SUB-ASSY, TIE ROD, RH (FZJ80, 1FZFE) |
Inquire About This Part
Not sure if this fits? Send us your VIN number and we will double check for you.
