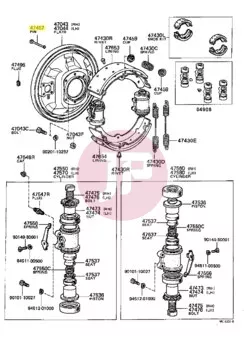

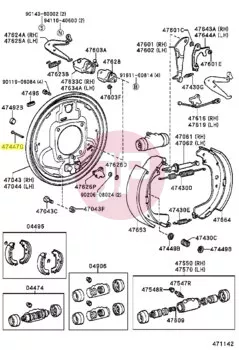

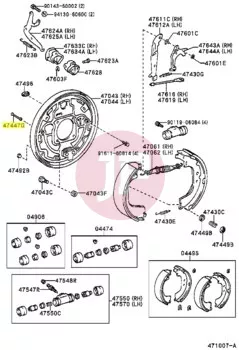

TOYOTA 47447-60010 Brake Shoe Hold-Down Pin
Genuine part. Fitment information is for reference only. To ensure 100% compatibility, please send us a message with your VIN number before ordering.
Product Description
The genuine TOYOTA 47447-60010 brake shoe hold-down pin is an essential safety and retaining component of the drum brake system. This precision-manufactured OEM part ensures that the brake shoes are mounted securely yet flexibly to the backing plate, allowing proper brake shoe movement during braking cycles.
Technical Features and Properties
- Manufacturer: TOYOTA (Original Equipment Manufacturer)
- Part Type: Brake shoe hold-down pin
- Material: High-strength, heat-treated steel alloy for maximum tensile strength and durability.
- Surface Treatment: Specialized corrosion-resistant zinc-plated coating that resists moisture, mud, and road salt.
- Installation Location: Drum brake assembly (typically on the rear axle).
Function and Importance of the Brake Shoe Hold-Down Pin
Working in conjunction with the brake shoe hold-down spring and retainer/cup, the pin's function is to hold the brake shoe securely against the backing plate. This prevents lateral displacement and vibration of the brake shoes while allowing the necessary axial movement when expanding against the brake drum. Genuine OEM quality ensures quiet and smooth brake operation.
Signs of Failure or Wear
This small yet critical component of the brake system is subject to continuous mechanical stress, elevated temperatures, and environmental exposure. The following signs may indicate wear or damage to the hold-down pin:
- Noises from the drum brake: Rattling or metallic clicking sounds occurring during braking or on rough roads, caused by a loosened brake shoe.
- Uneven brake shoe wear: If the pin bends or corrodes, the brake shoe will not seat properly, leading to uneven wear patterns.
- Reduced braking performance: Improper positioning of the brake shoe can cause diminished braking efficiency.
- Visibly apparent corrosion: If heavy rust, material fatigue, or deformation is detected during maintenance, immediate replacement of the pin is necessary.
To ensure safe and reliable operation of the brake system, it is always recommended to replace the hold-down pins and their associated springs whenever replacing the brake shoes.
Technical Specifications
| Brand | TOYOTA |
|---|---|
| Weight | 0.005 kg |
Compatible Vehicles
| Make | Model | Engine | Year | Notes |
|---|---|---|---|---|
| Toyota | Coaster (B20/B30) | All Engines | 1982 - 1993 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) |
| Toyota | Coaster (B40/B50) | All Engines | 1977 - 1982 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) |
| Toyota | Dyna / Toyoace (U100/U200/Y100) | All Engines | 1977 - 1984 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) |
| Toyota | Dyna / Toyoace (U20-U50/Y20-Y30) | All Engines | 1977 - 1984 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) |
| Toyota | Dyna / Toyoace (U300/U400/Y200) | All Engines | 1977 - 1985 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) |
| Toyota | Dyna / Toyoace (U60-U90/Y50-Y80) | All Engines | 1984 - 1997 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) |
| Toyota | Dyna / Toyoace (U600/U700) | All Engines | 1984 - 1995 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) |
| Toyota | Land Cruiser 100 (J100) | 4.2 D (1HZ) | 1998 - 2005 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) (HZJ105, 1HZ) |
| Toyota | Land Cruiser 100 (J100) | 4.5 (1FZFE) | 2005 - 9999 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) (FZJ100, 1FZFE) |
| Toyota | Land Cruiser 40 (J40) | All Engines | 1975 - 1986 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) (BJ40) |
| Toyota | Land Cruiser 55 (J50) | All Engines | 1975 - 1980 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) |
| Toyota | Land Cruiser 60 (J60) | 4.0 (3FE) | 1980 - 1984 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) (FJ60, 3FE) |
| Toyota | Land Cruiser 70 (J70) | 3.4 TD (13BT) | 1984 - 1990 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) (BJ70, 13BT) |
| Toyota | Land Cruiser 70 (J70) | 4.2 D (1HZ) | 1990 - 9999 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) (FJ75, 1HZ) |
| Toyota | Land Cruiser 70 (J70) | 4.5 (1FZF) | 1990 - 1993 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) (FJ70, 1FZF) |
| Toyota | Land Cruiser 70 (J70) | 3.5 D (1PZ) | 1993 - 1994 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) (PZJ70, 1PZ) |
| Toyota | Land Cruiser 70 (J70) | 4.0 (1GRFE) | 2007 - 2014 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) (GRJ79, 1GRFE) |
| Toyota | Land Cruiser 70 (J70) | 4.5 D-4D (1VDFTV) | 2007 - 2012 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) (VDJ70, 1VDFTV) |
| Toyota | Land Cruiser 80 (J80) | 4.5 (1FZF) | 1990 - 1996 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) (FZJ80, 1FZF) |
| Toyota | Land Cruiser 80 (J80) | 4.2 TD (1HDFT) | 1990 - 1992 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) (HDJ80, 1HDFT) |
| Toyota | Land Cruiser 80 (J80) | 4.0 (3FE) | 1990 - 1995 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) (FJ80, 3FE) |
| Toyota | Land Cruiser 80 (J80) | 4.2 D (1HZ) | 1992 - 1999 | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) (HZJ80, 1HZ) |
| Toyota | T100 (RCK10) | All Engines | 1992 - ... | PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) |
Inquire About This Part
Not sure if this fits? Send us your VIN number and we will double check for you.
