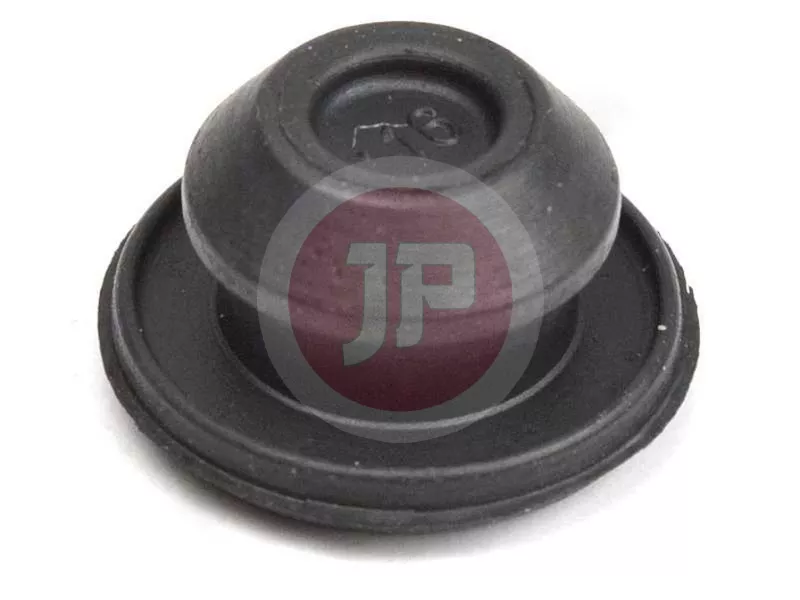

TOYOTA 47491-22020 Brake Shoe Adjusting Plug

The genuine TOYOTA 47491-22020 brake shoe adjusting plug (PLUG, SHOE ADJUSTING) is a compact yet essential protective and sealing component in a vehicle drum brake system. This specialized rubber plug is designed to seal the service access aperture on the brake backing plate, through which the brake shoe adjusting mechanism (star wheel) is externally accessed and adjusted.

Function and Importance

The primary function of the brake shoe adjusting plug is to protect the internal drum brake assembly by providing a tight seal against the elements. It prevents external contaminants—such as water, mud, dust, road salt, and abrasive road debris—from entering the brake drum interior. If this plug is missing, degraded, or damaged, moisture and dirt ingress can cause corrosion and seizing of the brake shoe adjuster, leading to uneven braking performance, accelerated brake shoe wear, or potential brake system malfunction.

Technical Specifications

• Manufacturer: TOYOTA (Genuine OEM part)
• Part Number: 47491-22020
• Part Name: Brake Shoe Adjusting Plug (Plug, Shoe Adjusting)
• Material: High-grade, heat- and ozone-resistant elastomer (specialized rubber compound) engineered to withstand elevated operating temperatures and chemical exposure (such as brake fluids and cleaning agents).
• Installation Position: Rear brake backing plate / brake base plate (service access hole).
• Elasticity: High elasticity and shape retention for a secure, tight, and vibration-resistant fit.

Signs of Wear or Failure

Due to continuous exposure to environmental conditions and thermal cycles, the plug can degrade over time. Common symptoms of failure include:

• Rubber aging, cracking, hardening, or loss of pliability.
• Missing or dislodged plug resulting from mechanical impact or improper installation.
• Evidence of moisture, road grit, or dirt inside the backing plate during maintenance inspections.

During drum brake maintenance or brake shoe replacement, it is always recommended to inspect the condition of these access plugs and replace them if compromised to ensure optimal service life and protection of the drum brake assembly.
