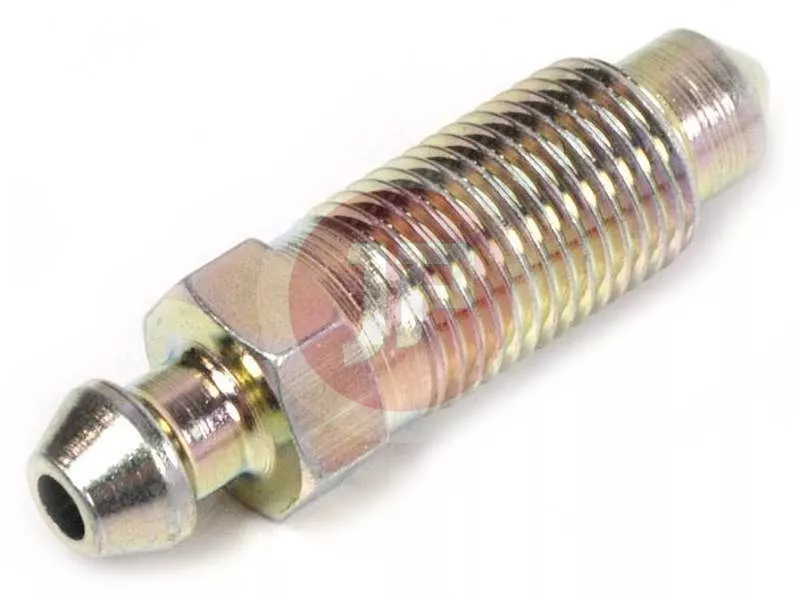

TOYOTA 47547-20030 Bleeder Plug

The genuine Toyota (SKU: 47547-20030) bleeder plug (PLUG, BLEEDER) is an essential precision component of the hydraulic brake system and, in some applications, the clutch slave cylinder. Its primary function is to allow the safe and controlled evacuation of accumulated air and aged brake fluid during maintenance procedures.

Technical Features and Construction

• Material Quality: High-strength, hardened steel alloy engineered to withstand high hydraulic pressure and the chemical effects of brake fluid.
• Surface Treatment: Anti-corrosion galvanized or cadmium-plated coating to provide protection against environmental factors such as moisture and road salt.
• Sealing Mechanism: Precision-machined tapered seat that creates a metal-to-metal seal to guarantee leak-free operation within the caliper or cylinder body.
• Design: Manufactured with internal axial and radial ports for fluid evacuation, along with an integrated hex head for accurate torque application.

Function and Importance of the Bleeder Plug

The hydraulic brake system operates as a closed circuit where the presence of air drastically diminishes braking performance due to air compressibility. Opening the bleeder plug allows trapped air to be purged from the circuit, restoring firm pedal feel and immediate braking response. Ensuring that this component seals completely is vital to prevent brake fluid loss and keep external contaminants out of the hydraulic circuit.

Common Symptoms of Wear and Failure

• Corrosion and Seizing: High thermal cycles and exposure to moisture around the caliper often lead to thread oxidation, which can cause the plug to seize or shear off when attempting to loosen it.
• Mechanical Damage: Using incorrectly sized or worn tools can round off the hex head, preventing subsequent loosening or torquing.
• Fluid Leakage: Micro-damage to the tapered sealing surface or thread deformation caused by overtightening can result in brake fluid leaks, impairing hydraulic pressure retention.
• Blockage: Internal bleed passages can become clogged with brake dust or rust deposits, obstructing fluid flow during service.
