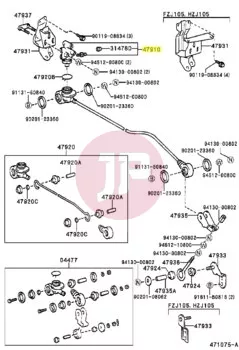

TOYOTA 47910-60120 Load Sensing Proportioning Valve

The genuine Toyota 47910-60120 load sensing proportioning valve (VALVE ASSY, LOAD SENSING PROPORTIONING) is a critical safety component of the vehicle's hydraulic brake system. Its primary function is to automatically and dynamically regulate braking force applied to the rear axle according to the vehicle's instantaneous load.

Operating Principle and Function

The load sensing proportioning valve (LSPV) monitors the change in distance (suspension travel) between the rear axle and the body via a mechanical spring arm. When the vehicle is unladen, the valve restricts hydraulic pressure to the rear brakes, preventing premature rear wheel lockup and vehicle skidding under sudden braking. As vehicle load increases (with passengers or cargo), the body moves closer to the axle, causing the valve to open further and deliver higher hydraulic pressure to the rear brakes, optimizing total braking performance and reducing stopping distances.

Technical Specifications

• Manufacturer: TOYOTA (Genuine OEM part)
• Part Type: Load Sensing Proportioning Valve (LSPV)
• Material Quality: Heavy-duty, corrosion-resistant cast iron and steel housing for maximum hydraulic pressure resistance.
• Seals: Special brake-fluid-resistant rubber seals for leak-free operation.
• Connections: Precision threaded brake line ports for a perfect fit with the factory brake system.

Typical Signs of Failure

Because the proportioning valve is mounted on the vehicle chassis and exposed to harsh environmental elements, it can deteriorate over time. Common symptoms of failure include:

• Brake Fluid Leaks: Fluid seepage around the valve body or beneath the protective rubber dust boot indicates worn internal seals.
• Rear Wheel Lock-up: If the valve seizes in the open position, the rear wheels may lock up prematurely even under unladen conditions, causing vehicle instability.
• Reduced Braking Efficiency: If the valve seizes in the closed position, insufficient hydraulic pressure reaches the rear brakes, significantly increasing stopping distances, especially under load.
• Mechanical Corrosion: Rust or binding on the sensing spring or operating lever prevents the valve from functioning properly.

Due to the safety-critical nature of the brake system, a failed or leaking proportioning valve requires immediate replacement. A genuine Toyota part guarantees accurate calibration and long-lasting durability.
