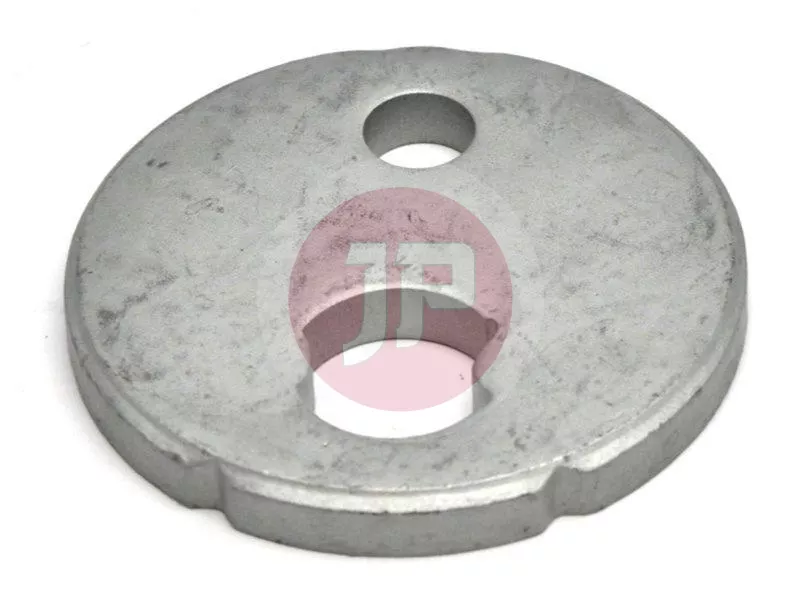

TOYOTA 48198-0K010 Camber Adjusting Cam Washer

The genuine Toyota (SKU: 48198-0K010) camber adjusting cam washer (factory designation: CAM, CAMBER ADJUST) is a critical component designed for the precise alignment of the vehicle's suspension geometry. This specialized eccentric cam washer allows accurate adjustment of the suspension camber angle and, in certain applications, caster angle at the control arm mounting points.

Function and Importance

The eccentric cam design allows the position of the control arm to be continuously adjusted by rotating the mounting bolt. This fine-tuning is essential for restoring factory wheel alignment specifications, especially following suspension repairs, control arm replacement, or heavy impacts (such as hitting potholes). Proper adjustment ensures optimal tire contact, straight-line driving stability, and even tire wear.

Technical Specifications and Features

• Material Quality: High-strength, hardened steel alloy engineered to withstand constant dynamic and static suspension loads.
• Surface Treatment: Specialized anti-corrosion coating (galvanized/zinc-plated finish) providing reliable protection against moisture, mud, and road salts.
• Design: Precision eccentric bore and indexed/notched outer rim for accurate, repeatable alignment settings.
• Mounting Position: Front or rear lower control arm mounting points (depending on vehicle model).

Signs of Wear and Failure

Due to its exposed position on the vehicle undercarriage, the following issues may occur over time:

• Corrosion and Seizure: Rust can cause the cam washer and alignment bolt to seize together, making suspension alignment impossible (often requiring the bolt to be cut out).
• Deformation: Severe mechanical impact (e.g., curbing) can bend the washer, compromising its eccentric adjustment capability.
• Misalignment: If the securing bolt loosens or wears out, the camber angle can shift during driving, resulting in vehicle pulling and premature, uneven tire wear.

When servicing suspension components or performing a wheel alignment, it is strongly recommended to inspect the condition of the camber bolts and washers, and replace them with genuine OEM parts when necessary to ensure safe and precise operation.
