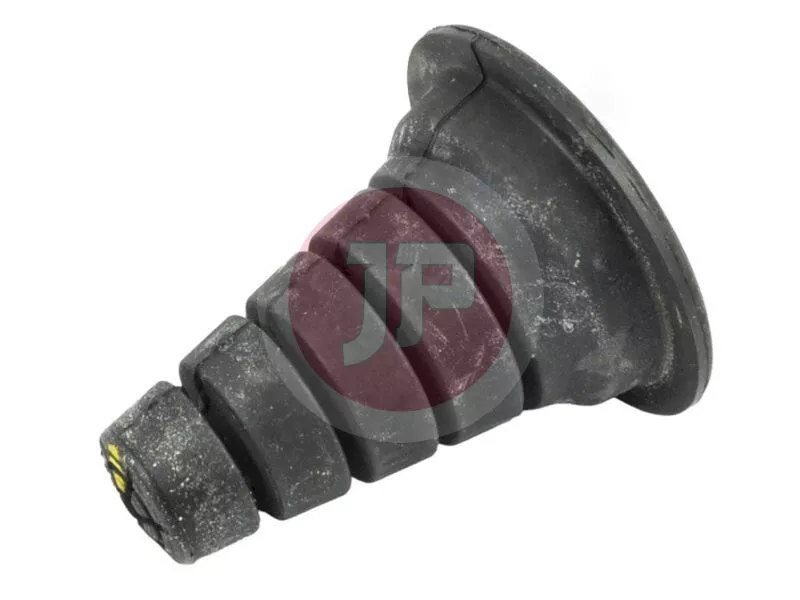

TOYOTA 48302-60080 Suspension Bump Stop

This genuine Toyota (OEM) bump stop (part number: 48302-60080, factory designation: SPRING SUB-ASSY) is a critical safety and comfort component of the vehicle's suspension system. This premium quality genuine part guarantees a perfect fit and long service life, preserving the vehicle's original driving characteristics.

Function and Operating Principle

The primary function of the bump stop is to provide progressive damping during maximum suspension compression (jounce). When the vehicle travels over rough terrain or is subjected to significant overloading, this component prevents direct metal-to-metal contact between suspension parts. This protects shock absorbers, springs, and body mounting points from permanent deformation and fatigue fractures.

Technical Features and Material Quality

• Material Composition: High-resistance microcellular polyurethane elastomer or specially compounded vulcanized rubber offering superior energy absorption properties.
• Environmental Resistance: Highly resistant to road salt, moisture, engine oil, and extreme temperature fluctuations (ranging from -40°C to +80°C).
• Design: Progressive geometric shape that increases resistance proportionally as the load increases.

Symptoms of Wear and Importance

Bump stops are subjected to continuous mechanical and environmental stress, which can lead to material aging, cracking, or complete degradation over time. Common signs of failure include:

• Loud, metallic bottoming-out noises (clunking) when driving over uneven surfaces or speed bumps.
• Visually evident cracking, crumbling, or missing sections of the component.
• Premature failure or leakage of shock absorbers due to excessive physical stress.

Replacing a damaged or missing bump stop is essential to protect other suspension components and maintain safe road handling.
