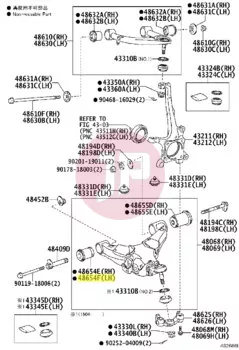

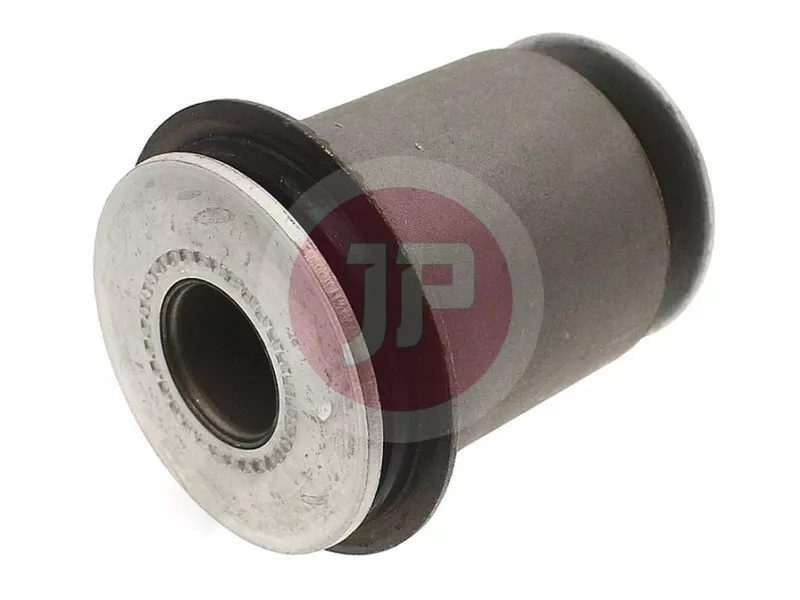

TOYOTA 48654-60040 Lower Control Arm Bushing

The TOYOTA 48654-60040 is an authentic OEM-grade lower control arm bushing (BUSH, LWR ARM), playing a vital role in the stability and ride comfort of the vehicle's front suspension. This bonded rubber-to-metal component provides the critical connection between the lower control arm and the vehicle's chassis or subframe, allowing controlled articulation of the suspension.

Technical Characteristics and Construction

Genuine Toyota bushings are engineered and manufactured to the most stringent automotive standards, ensuring long service life and precise fitment:

• Construction: Vulcanized rubber-to-metal bonding technology, where a specially formulated elastomer core is securely bonded to inner and outer steel sleeves.
• Material Quality: Highly fatigue-resistant elastomer with excellent resistance to ozone, oil, heat, weathering, and road de-icing salts.
• Installation Position: Front suspension, lower control arm.
• Geometry: Preserves factory wheel alignment parameters (camber, toe) even under heavy dynamic loads.

Function and Importance of the Control Arm Bushing

The primary function of the lower control arm bushing is to isolate and absorb road vibrations, impacts, and harshness before they transfer into the cabin. Additionally, it ensures the control arm moves exclusively along its designated vertical plane, preventing undesirable longitudinal or lateral wheel deflection during acceleration, braking, and cornering.

Typical Signs of Wear

Over time, the rubber degrades, cracks, or separates from the metal sleeve. A deteriorated bushing may cause the following symptoms:

• Knocking, metallic, or squeaking noises from the suspension, particularly when driving over uneven road surfaces or speed bumps.
• Vague, wandering steering feel and degraded straight-line tracking.
• Uneven or abnormal tire wear caused by altered suspension geometry.
• Slight pulling or instability under braking.

Replacing worn or damaged bushings in a timely manner is essential for driving safety and prevents premature wear on other suspension components.
