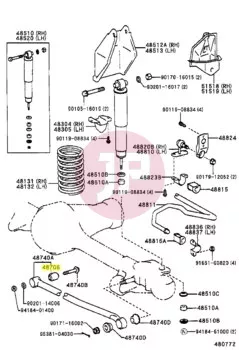

TOYOTA 48706-60030 Panhard Rod Bushing

The genuine TOYOTA 48706-60030 part is a premium-quality Panhard rod bushing (Bush Sub-Assy) responsible for the stability of the vehicle's suspension system. The Panhard rod connects the axle to the chassis, preventing lateral movement while allowing the necessary vertical movement for suspension travel. This bushing provides a flexible yet stable mounting for the rod.

Technical Features and Construction

• High-quality vulcanized rubber: Provides optimal elasticity and high vibration damping, minimizing noise coming from the chassis and suspension.
• Bonded rubber-to-metal (Silentblock): Thanks to precise manufacturing technology, the adhesion between the metal sleeve and the rubber body is exceptionally resistant to shear and torsional forces.
• Weather and chemical resistance: Resists road salt, moisture, mud, and various lubricants.
• Original (OEM) quality: Guarantees an exact fit and long service life, maintaining the vehicle's original driving dynamics.

Role and Importance of the Panhard Bushing

The primary task of the bushing is to maintain precise suspension geometry under load. During cornering or driving on uneven road surfaces, significant lateral forces act upon the Panhard rod. A properly functioning bushing absorbs these dynamic loads, thereby enhancing vehicle handling and driving stability.

Symptoms of Wear and Failure

Over time, rubber components age, harden, or tear due to continuous loading and environmental influences. The most common signs of failure include:

• Knocking, metallic, or squeaking noises from the suspension, especially when driving over road imperfections or cornering.
• Unstable handling in the rear of the vehicle, particularly at higher speeds.
• Visible cracking, deformation, or complete separation of the rubber from the metal sleeve.
• Uneven tire wear on the rear axle due to altered suspension geometry.
