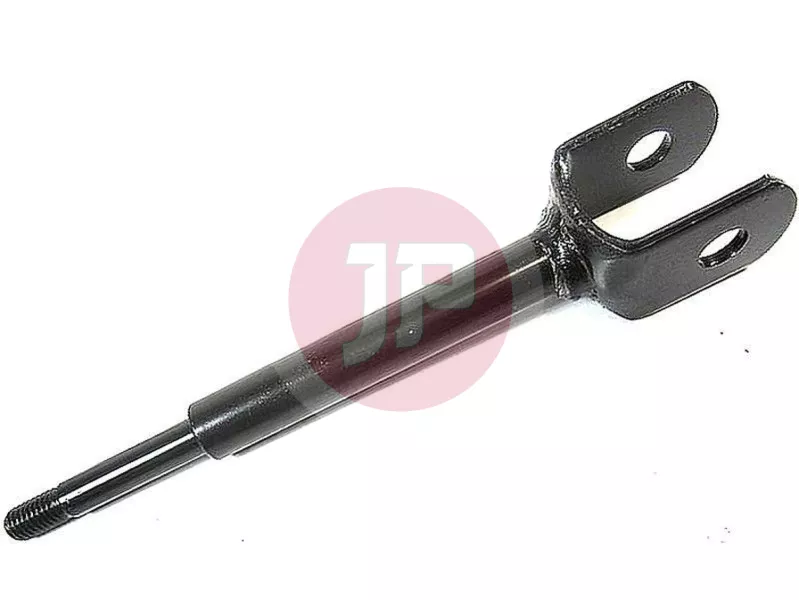

TOYOTA 48802-60090 Stabilizer Link Sub-Assembly
Genuine part. Fitment information is for reference only. To ensure 100% compatibility, please send us a message with your VIN number before ordering.
Categories
Product Description
This genuine Toyota OEM stabilizer link sub-assembly (SKU: 48802-60090) is a premium-quality component that provides a direct connection between the anti-roll sway bar and other suspension components (control arm or shock absorber). The primary function of the stabilizer link is to minimize body roll during cornering, thereby keeping the vehicle stable and safe on the road.
Operating Principle and Importance
Centrifugal force generated during cornering causes the vehicle body to roll. The stabilizer link transmits this load to the stabilizer bar, which acts as a torsion spring to resist the roll. Genuine Toyota OEM parts are manufactured to strict factory standards, ensuring optimal suspension geometry and maximum service life.
Common Symptoms of Wear and Failure
- Knocking, rattling, or metallic noises from the suspension, particularly when driving over road imperfections.
- Compromised cornering stability and increased body roll.
- Cracked or torn ball joint dust boots, leading to grease loss and premature wear of the assembly.
- Uneven tire wear resulting from improper suspension geometry.
Technical Specifications
- Manufacturer: TOYOTA (Original Equipment Manufacturer)
- Part Number (SKU): 48802-60090
- Part Type: Stabilizer Link Sub-Assembly
- Material: Premium high-tensile steel alloy for maximum load capacity.
- Corrosion Protection: Specialized surface coating against environmental influences and road salt.
- Connection: Durable, low-friction ball joints with integrated dust boots and factory lubrication.
Technical Specifications
| Brand | TOYOTA |
|---|---|
| Weight | 0.170 kg |
Compatible Vehicles
| Make | Model | Engine | Year | Notes |
|---|---|---|---|---|
| Toyota | Land Cruiser 100 (J100) | 4.2 TD (1HDFTE) | 1998 - ... | LINK SUB-ASSY, STABILIZER (HDJ101, 1HDFTE) |
| Toyota | Land Cruiser 100 (J100) | 4.7 (2UZFE) | 1998 - ... | LINK SUB-ASSY, STABILIZER (UZJ100, 2UZFE) |
| Toyota | Land Cruiser 100 (J100) | 4.5 (1FZFE) | 2002 - ... | LINK SUB-ASSY, STABILIZER (FZJ100, 1FZFE) |
| Toyota | Land Cruiser 70 (J70) | 4.2 TD (1HDFTE) | 1999 - 2007 | LINK SUB-ASSY, STABILIZER (HDJ78, 1HDFTE) |
| Toyota | Land Cruiser 70 (J70) | 4.5 (1FZF) | 1999 - 2009 | LINK SUB-ASSY, STABILIZER (FZJ78, 1FZF) |
| Toyota | Land Cruiser 70 (J70) | 4.2 D (1HZ) | 1999 - 2001 | LINK SUB-ASSY, STABILIZER (HZJ78, 1HZ) |
| Toyota | Land Cruiser 70 (J70) | 4.0 (1GRFE) | 2007 - ... | LINK SUB-ASSY, STABILIZER (GRJ76, 1GRFE) |
| Toyota | Land Cruiser 70 (J70) | 3.4 TD (13BT) | 2016 - 9999 | LINK SUB-ASSY, STABILIZER (TJ0004030021, 13BT) |
| Toyota | Lexus LX (J100) | 4.7 (2UZFE) | 1998 - ... | LINK SUB-ASSY, STABILIZER (UZJ100, 2UZFE) |
Inquire About This Part
Not sure if this fits? Send us your VIN number and we will double check for you.
