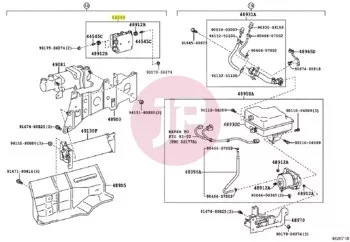

TOYOTA 48940-60020 Height Control Valve Assembly

The genuine TOYOTA 48940-60020 height control valve assembly (VALVE ASSY, HEIGHT) is a critical control component of the vehicle's active suspension system (such as the Active Height Control - AHC hydraulic system). This precision unit is responsible for the automatic or manual regulation of the suspension height, ensuring optimal ground clearance, stability, and maximum ride comfort under all road conditions.

Operating Principle and Function

The height control valve directly regulates the flow of hydraulic fluid or air to the suspension cylinders. Based on signals received from the vehicle's angle and height sensors, it adjusts the pressure by opening or closing the valve, thereby raising or lowering the chassis according to load conditions.

Technical Specifications

• Manufacturer: TOYOTA (Genuine OEM part)
• Part Number: 48940-60020
• Product Name: Height Control Valve Assembly (VALVE ASSY, HEIGHT)
• Material Composition: Premium-grade, corrosion-resistant metal alloy housing with specialized internal seals to withstand high operating pressures.
• System: Engineered for Active Height Control (AHC) systems.

Typical Symptoms of Failure

Wear or internal seal deterioration in the height control valve can result in the following issues:

• The front or rear of the vehicle unexpectedly sags or drops while parked.
• The height adjustment process becomes abnormally slow or ceases functioning entirely.
• Hydraulic fluid leakage is visible around the valve assembly.
• A suspension system malfunction indicator illuminates on the dashboard (e.g., AHC warning light).
