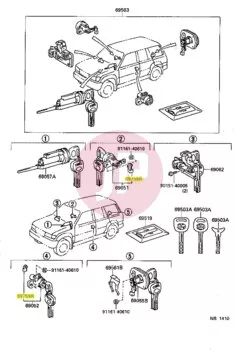

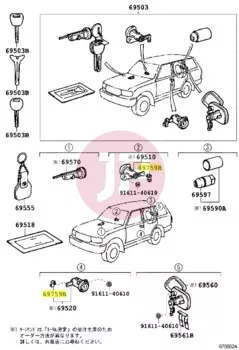

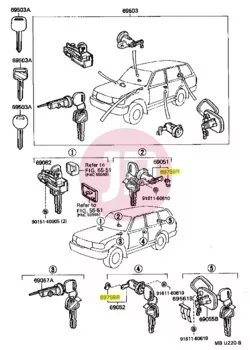

TOYOTA 69759-24080 Door Lock Linkage Clip

This genuine TOYOTA (OEM part number: 69759-24080) door lock linkage clip (snap retainer / snap) is a critical fastening element within the vehicle's door lock mechanism. The precision-manufactured plastic clip secures the mechanical connection for the metal rods running between the lock cylinder, interior/exterior door handles, and the latch mechanism itself.

Key Functions and Operating Principle

The primary function of the door lock linkage clip is to hold the operating rods firmly and free of play in their designated positions. It prevents the metal rods from disengaging from their connection points due to vehicle vibrations, door slamming, or regular usage. This ensures continuous mechanical force transmission whenever the door handle is pulled or the key is turned.

Technical Characteristics and Material Quality

• Material Composition: Premium-grade polymer optimized for automotive applications (typically POM or Polyamide), featuring excellent wear resistance, high tensile strength, and chemical resistance (resistant to door lock lubricating greases).
• Temperature Resistance: Broad operating temperature range, ensuring the clip does not become brittle in extreme winter cold and does not soften in summer heat.
• Design: Snap-on fastening technology enabling quick and secure installation at the factory mounting locations.

Typical Symptoms of Wear and Failure

As plastic components age over time due to environmental factors (temperature fluctuations, humidity), the clip may suffer from material fatigue or breakage. Common symptoms of failure include:

• Inoperative Door Handle: The door fails to open when the exterior or interior handle is pulled because the linkage rod has detached from the lever.
• Increased Free Play: The door handle or lock knob feels loose and offers no resistance.
• Rattling Noises: Metallic rattling coming from inside the door panel, caused by an unfastened, freely moving linkage rod.

To ensure safe and reliable door operation, replacing damaged or weakened clips exclusively with OEM-quality components is recommended.
