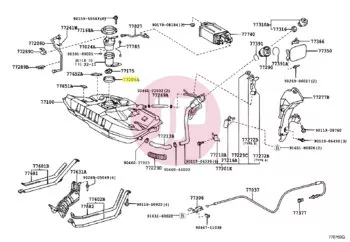

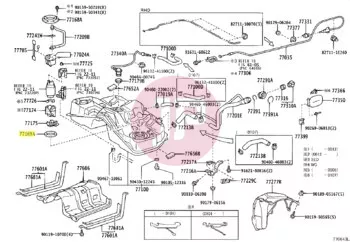

TOYOTA 77169-33020 Fuel Suction Gasket

The genuine OEM part TOYOTA 77169-33020 is a premium quality fuel tank gasket (fuel pump / sender unit gasket), essential for the safe and leak-free operation of the fuel supply system.

Function and Importance

This gasket provides a hermetic seal between the mating surfaces of the fuel tank and the fuel suction plate / pump assembly. It prevents liquid fuel leaks and the escape of fuel vapors into the atmosphere, which is critical for compliance with environmental emissions standards (EVAP system) and for fire safety. Furthermore, it protects the fuel system against the ingress of external contaminants such as dust and moisture.

Technical Specifications

• Material: Special fuel- and chemical-resistant elastomer offering outstanding resistance to modern automotive fuels (gasoline, diesel, bioethanol blends).
• Installation Location: On the upper section of the fuel tank, beneath the fuel pump mounting flange.
• Durability: Superior resistance to ozone, heat, and aging to ensure a long service life.

Signs of Wear or Failure

• Strong fuel smell inside the vehicle cabin or around the fuel tank area.
• Fuel leaks or dampness on top of the fuel tank.
• Illumination of the "Check Engine" warning light caused by pressure loss in the evaporative emission control (EVAP) system.
• Physical damage, cracking, or hardening of the gasket observed during fuel pump removal (gasket replacement is recommended whenever the assembly is disassembled).
